Halogen Free Flame Retardant Cable Sleeve For Wire Harness Management

product description

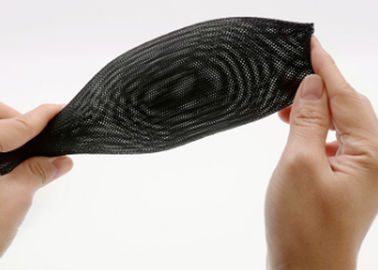

The PET braided cable sleeve can be easily expanded to 150% and easily grips irregularly shaped objects.

The braided mesh tube can be kept soft in a wide temperature range, can inhibit chemical corrosion, UV protection and friction. Its unique mesh features also have good ventilation and instant diffusion of wire heat function. The surface of the product is smooth, bright and colorful.

Therefore, the weaving network tube is an ideal product for line management and bundling applications of electronics, automobiles, airplanes, ships, industry, and homes.

For example, DVI wire harness, HDMI wire harness protection, fiber optic lines, motorized engine lines, home theater line management, computer chassis wire layout, office line management, car wiring harness, scuba hose protection, etc.

Main Features of PET cable sleeve :

The product has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection.

PET expandable braided sleeve for cable harness is braided by environment-friendly polyester monofil. (PET,PA66), the sleeve possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

1. Operating temperature: -50°C~150°C

2. Melting point: 250±5°C.

3. Flammability: UL VW-1

4. Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern

5. Cutting tool: Hot knife

6. Certificate: RoHS, Reach,UL.

Usage:

PET Expandable sleeve is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.

Functions of cable sleeve:

To meet the requirement of wear protection in various industrial fields .it expands the diameter to 1.5 times larger than the original size with unique weaving structure.

We have one of the most extensive ranges of insulation products, expandable braided sleeving, cable ties, and accessories on the market, suitable for a wide spectrum of industries, from electrical design and construction companies, to manufacturers of electrical products and building industries. Expandable Braided Sleeves is manufactured from Polyethylene Terepthalate, or PET, which has great properties of flexibility and strength, plus a good resistance against chemicals, and when used on wire runs, it adds protection and extra insulation.

Notes:

1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.
