PET Expandable Braided Sleeving
>

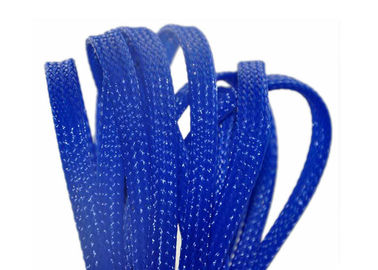

Expandable Mesh Sleeving , Flexo Pet Expandable Braided Cable Sleeving

Expandable Mesh Sleeving , Flexo Pet Expandable Braided Cable Sleeving

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Pet Braided Sleeving
Material:
Pet,nylon
Size:
Custom
Fuction:
Wear Resistant
Lead Time:
5 Days
Usage:
Cable Harness
Supply Ability:
500,000 meters per month
High Light:

expandable wire sleeving

,

braided wire loom

Product Description

Expandable Mesh Sleeving , Flexo Pet Expandable Braided Cable Sleeving





Product feactures of Halogen Free PET Eexpandable Braided Sleeving


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Main Features for Halogen Free PET Eexpandable Braided Sleeving

1. Operating temperature: -50°C~150°C

2. Melting point: 250±5°C.

3.Flammability: UL VW-1
4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern

5.Cutting tool: Hot knife
6. Certificate: RoHS, MSDS



Flexo PET Eexpandable Braided Sleeving :

1. Automobile wires protection

2. Structured cabling system

3. A/V cables & cables

4.Industrial hoses & tubes protection



What are the Special of Halogen Free PET Eexpandable Braided Sleeving ?

1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant






Application Fields Electronics, automotive, marine and industrial wire harnessing application
Sleeve Material 0.25mm PET monofilament
Working Temperature -70°C to 125°C (-103°F to 257°F)
Melt Point 260°C (500°F)
Flame Retardant Yes
Flammability Class UL 94 V1
Size 20mm
Available Size 3mm~100mm
Standard Color Black,White,Grey
Available Color 64 colors available, accorcing to our color guide
Packaging 200m/Roll,4 rolls/ctn
Carton size: 52*52*18cm or customized
Container: 2000 rolls or 500 cartons for one 20' container
Full Size Sample Lead time: As usual 3-7 working days
Production Lead time: 7~10 days




Notes for Halogen Free PET Eexpandable Braided Sleeving

Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.


The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.
The environmentally friendly braided sleeve is mainly used in computer power cords, audio video cables, automobiles, aviation, wire and cable industries, etc. It plays a protective and beautifying role and has certain shielding performance. It is most suitable for the audio medical industry, economical and easy to organize. At the same time, it has very good wear and corrosion resistance, suitable for wire harness protection, wear, corrosion, decoration and storage in various mechanical and electronic industries.
The environmentally friendly braided sleeve is made of one or more PET, nylon, copper or cotton threads, PP yarn, nylon, and low-elastic yarn. It can be exported to all countries in the world through environmental protection certification.

Properties: Excellent flexibility, can be loosely, easy to lead wires, excellent contractility, elasticity and abrasive resistance.





Specifications of Halogen Free PET Eexpandable Braided Sleeving





Model Natural
OD(MM)
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
  Model Natural
OD(MM))
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
161020 1 2 2.5 1000   641025 8 16 7 500
161025 1 2 2.5 1000   642020 12 25 10.5 500
162020 2 4 3 1000   642025 14 30 12 500
162025 3 6 3 1000   643020 16 32 14 500
163020 3 6 4 1000   643025 18 35 17 250
163025 4 8 4 1000   721020 8 16 6.5 800
241020 2 4 3 1000   721025 9 18 7.5 800
241025 2 4 3 1000   722020 14 28 12 500
242020 3 6 4.5 1000   722025 16 32 14 500
242025 4 8 4.5 1000   723020 18 35 16 300
243020 4 8 5 800   723025 23 45 19 200
243025 5 10 5.5 500   961020 10 20 8 500
321020 3 6 3 1000   961025 11 22 9 560
321025 3 6 3 1000   962020 20 40 14 500
322020 5 10 4.5 500   962025 25 50 16 500
322025 6 12 4.5 500   963020 28 55 18 300
323020 6 12 6 500   963025 35 70 25 100
323025 7 14 7.5 500   964020 30 60 26 100
401020 4 8 3.5 800   964025 36 72 28 100
401025 4 8 3.5 800   965025 40 80 46 100
402020 6 12 5.5 500   1201020 10 20 10 300
402025 8 14 6 500   1201025 12 22 13 300
403020 8 16 7 600   1202020 22 45 15 200
403025 10 20 10 400   1202025 26 32 18 100
481020 5 10 4 1000   1203020 32 65 26 100
481025 6 12 4.5 500   1203025 38 75 32 100
482020 8 16 5.5 500   1204020 40 80 30 100
482025 10 20 7.5 500   1204025 45 90 40 100
483020 10 20 8.5 600   1205025 50 100 50g 50
483025 12 25 12 300   1206025 64 130 60g 50
561020 6 12 5 1000   1207025 76 150 70g 50
561025 7 14 6 800   1486025 80 160 80g 50
562020 10 20 8.5 500   1487025 90 180 90g 50
562025 12 25 10 500   1488025 100 200 100g 50
563020 14 30 11 500   flat1053020
563025 16 32 15 250   flat1053025
641020 7 14 6 1000   flat1054025







Notes for Halogen Free PET Eexpandable Braided Sleeving



1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.
