Electrical Braided Sleeving
>
Strong Cable Protection Electrical Braided Sleeving For Auto Equipment

Strong Cable Protection Electrical Braided Sleeving For Auto Equipment

Brand Name: Huiyunhai
Model Number: HYH
MOQ: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH
Name:
Expandable Braided Sleeving
Lead Time:
5 Days
Function:
Cable Protection
Feature 1:
Wear Resistant
Feature 2:
Flame Proof
Material:
Pet
Supply Ability:
500,000 meters per month
High Light:

braided electrical sleeving

,

high temperature braided sleeving

Product Description

Strong Cable Protection Electrical Braided Sleeving For Auto Equipment



What are the Special of our PET Electrical Braided Sleeving ?

1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant

Main Advantages of PET Electrical Braided Sleeving
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm / 0.12 silk monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach twice than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.


Application of Electrical Braided Sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection


product description of Electrical Braided Sleeving

PET cable sleeving, braided expandable sleeve is braided by environment-friendly polyester monofil. (PET(polyester) cable sleeve possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns. The open weave constrcture allows an easy installation on a bundle of hoses and cables,even if some with bulky or large connectors.

The PET braided sleeving can be easily expanded to 150% and easily grips irregularly shaped objects.
The braided sleeving can be kept soft in a wide temperature range, can inhibit chemical corrosion, UV protection and friction. Its unique mesh features also have good ventilation and instant diffusion of wire heat function. The product has smooth surface, bright color and various patterns.

Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses , to protect your investment
Aesthetically pleasing design is commonly used to decorate or conceal hoses and wires in automotive applications
Expandable design allows for quick and easy installation of cable or wire bundles
Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps

Resists chemicals and the elements for use in rugged or exposed applications
Durable construction provides superior protection from accidental cuts or consistent abrasion





Dimensions of cable sleeving:


Width Expandable range Packing
(m/roll)
Inch mm Min. Max.
1/8 3 1 6 500
1/4 6 3 9 500
5/16 8 5 16 400
3/8 10 7 19 400
1/2 12 8 24 300
5/8 15 10 27 300
3/4 20 14 30 250
1 25 18 35 200
1 1/4 30 20 50 150
1 1/2 40 30 60 100
1 3/4 45 35 75 100
2 50 40 80 100
2 1/2 64 45 105 100
3 76 64 120 100


Notes:


1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.

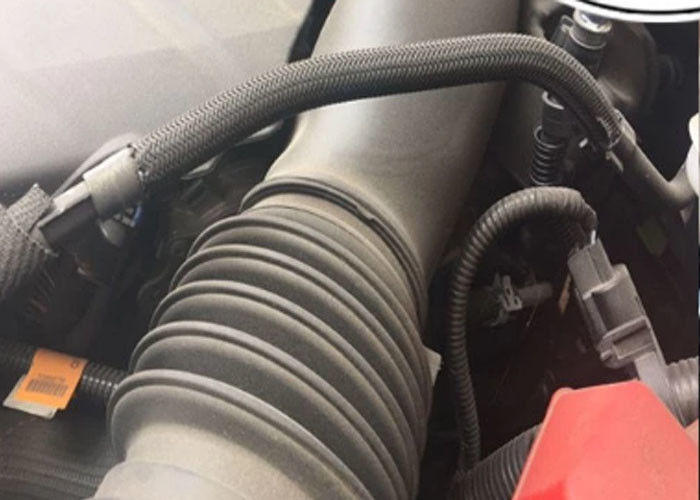

Strong Cable Protection Electrical Braided Sleeving For Auto Equipment 0

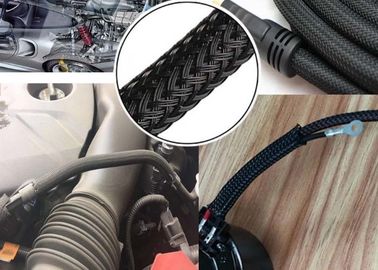

Strong Cable Protection Electrical Braided Sleeving For Auto Equipment 1
