|Place of Origin:||Shenzhen of China|
|Certification:||UL, RoHS, REACH|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Standard export carton|
|Supply Ability:||500,000 meters per month|
|Name:||Pet Braided Sleeving||Material:||Pet,nylon|
|Lead Time:||5 Days||Usage:||Cable Harness|
Elastic Pet Expandable Sleeving,
Flammability VW-1 Polyester Braided Sleeving

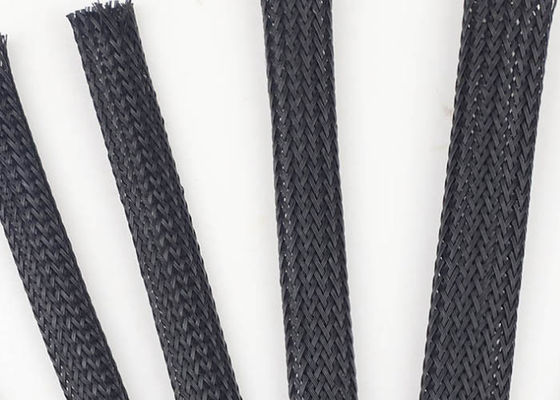

Black Braided Polyester PET Expandable Sleeve To Protect Wires Harness
Applications of PET Expandable Sleeve To Protect Wires Harness
It is suitable for protection of pipes, hoses and cable harnesses used within the automotive and industrial sectors.
Technical data of pet braided sleeving:
1. Material: Polyester
2. Operating range: - 50C - +150C
3. Melt Point: 250C+-5C
4. Flammability: VW-1
5. Standard colour: Black and grey. Other colors upon request.
6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free
Description of PET Expandable Sleeve To Protect Wires Harness
The braided mesh tube is made of environmentally friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a wide variety of colors. Products are widely used in computer power cords, audio and video lines, automotive, aviation, wire and cable industries, etc., to protect and beautify.
It’s used for covering cables, wire harnesses, tubes, industrial hoses where is required an additional protection.
We are a professional manufactuer and exporter established over 18 years, and with our European Sales Centre and a large warehouse based in the UK. We are specialised in making and supplying a wide range of pre-insulated and un-insulated terminals and other cable accessory products with many international standards and approvals, such as CE, RoHS, REACH, SGS and UL etc.
Braided Sleeving feactures of PET Expandable Sleeve To Protect Wires Harness
Excellent softness, easy to bend, elastic, easy to wire operation, good stretchability, elasticity and wear resistance, can maintain softness in a large temperature range, can inhibit chemical corrosion, UV and friction. The unique mesh features feature good ventilation and instant diffusion of wire heat.
The product has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection.
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Q1. What is your terms of payment?
A: We accept paypal, western union, payment by T/T in advance or LC, and trade assurance.before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. What is your sample policy?
A: free samples available.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5.How about the quality?
A: every order will not be sent over to you before it has been tested fine.
Q6.What's the shipping time?
A: The stock goods will be delivered within 3 days and the nonstock goods will be sent within 15 days after we received the advance payment.
Q7. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. We have our own design team,own mold workshop and injection moulding workshop.
4. Every new product can be made accurately by your design and demand.
5. Enough stock to fit your urgently need.
6. Perfect package according to your demand.
Structure of pet braided sleeving
Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.
Notes of braided sleeves
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
