Self Wrapping Split Braided Sleeving
>
VW-1 Flammability PET Braided Cable Wrap Sleeving

VW-1 Flammability PET Braided Cable Wrap Sleeving

Brand Name: Huiyunhai
Model Number: HYH-V
MOQ: Negotiable
Price: Negotiable
Packaging Details: standard export carton
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen of China
Certification:
UL, RoHS, REACH, SGS, ISO
Material:
PET, Pp
Size:
Custom
Color:
Custom
Cutting Tool:
Hot Cutting Knife
Feature:
Cable Wires Protection
Certificates:
UL CSA ROHS REACH
Supply Ability:
3 million meters per month
High Light:

VW-1 Flammability Braided Sleeving

,

Self Closing Braided Wrap

Product Description

Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving



Sizes for self closing split braided cable sleeves:



sleeve diameter(mm): 5,8,10,13,16,19,25,29,32,38,50,60,70mm. of course, we can customize the sizes as per your specific needs.



Technical data of Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Flammability: VW-1





Easy, cost and labor effective installation
• More flexible than split convoluted or spiral wrap
50% edge overlap
• Cut and abrasion resistant
• Halogen free
• Retains shape and rigidity throughout -50°C to 150°C temperature range



PET Wrap closing braided sleeve provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving but with the added feature of a hook and loop closure running the length of the material.

This self closing wrap braided sleeve allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.



What's the special of Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving

1. Flame-retardant and halogen-free.

2. It offers durable abrasion resistance in a wide range of industrial applications.

3. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.



Self-Closing Braided Sleeving is made of PET monofilament and PET multifilament or PET monofilament and Nylon multifilament,and then it is naturally rolled into a roll by a special process.The winding coverage can reach 25%.Easy to install and remove,beautiful,flame retardant,anti-wear.Mainly used for wiring of automobiles,military,ship, communication cable.





Application of Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving



Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.



Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.





Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





Description of Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving



The open self- closing braided sleeve is made of VO grade polyester monofilament, which has the characteristics of heat dissipation, wear resistance, acid resistance, dust resistance, softness, simple operation, convenience and quickness. The structure is beneficial to protect the maintenance, reassembly and overhaul of the internal wiring harness.



PET White Self Wrapping Split Braided Sleeving for cable management (PET woven mesh tube) is braided by environment friendly polyester monofil. PET, PA6, PA66, PPS are with good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving are smooth surface, bright color, various patterns.



self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors.



flexible semi-rigid wrappable split PET braided cable sleeving is a perfect solution to protect wires, cables, wire harnesses where ease of installation is paramount. With a 25% overlap, this sleeving wraps securely to itself eliminating the need to secure the sleeving opening with any other method.





Our data description of Woven Self Closing Textile Split Flexible Braided Cable Wrap Sleeving





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m

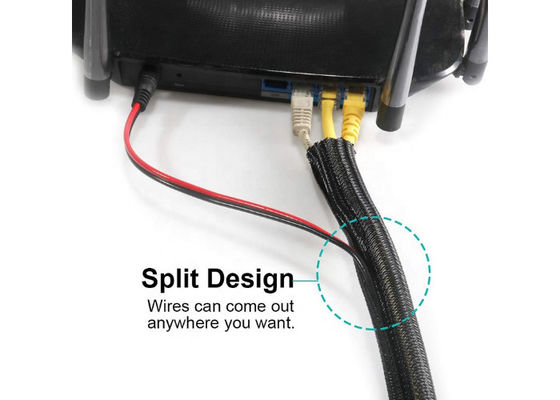

VW-1 Flammability PET Braided Cable Wrap Sleeving 0

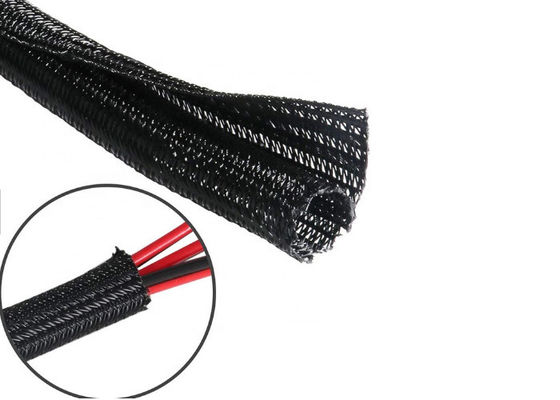

VW-1 Flammability PET Braided Cable Wrap Sleeving 1
