| Brand Name: | HYH |
| Model Number: | 3MM-100MM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 500meters/roll. 100meters/roll, 100FT/roll |
| Payment Terms: | D/P, T/T |
Black PET Expandable Braided Cable Sleeving Electrical Wiring Harness 3.0mm
Customized Black+White PET Braided Sleeve For Wiring Harness 3.0mm-80.0mm For Wiring Harness To Sort Out
Product Details:

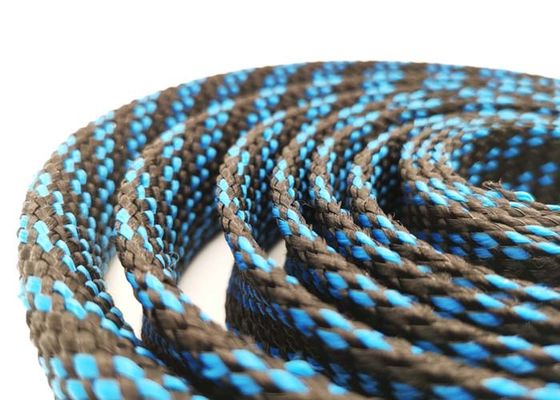

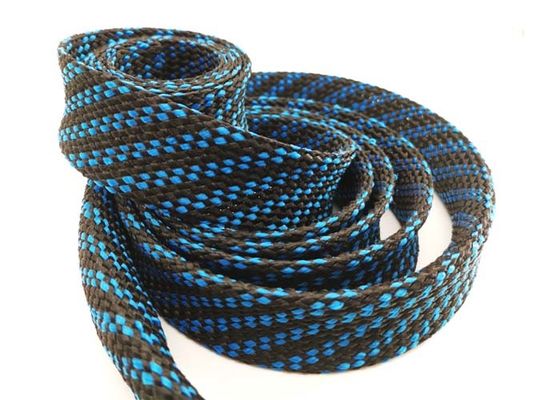

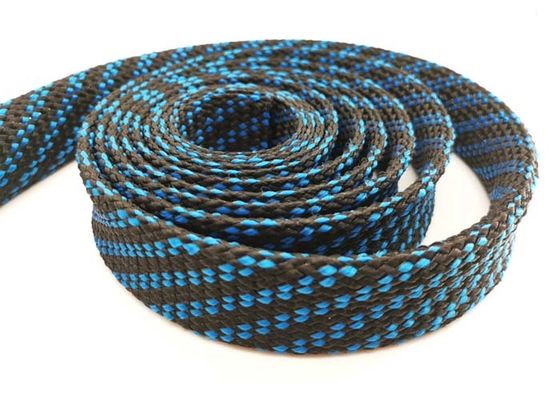

This set of products is made of silk threads woven from two different materials.
Some of it is PET silk, accounting for about 30%, and the remaining 70% is a mixture of thicker blue and black polyester yarn.
The combination of these two materials completes the perfect improvement of the characteristics of the two materials, which not only has the expansion of PET silk, but also has the soft characteristics of polyester, so that the braided sleeve can fully expand at the same time, but also can keep the maximum softness of the bound wire.
The product also has a certain abrasion resistance. Although the polyester yarn looks soft, it is tough in actual use, such as in ironing machine and vacuum cleaner wire harness, to prevent the wire harness from being damaged by the floor friction.
Size can be customized according to customer requirements.
Extension is introduced:
The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. HYH-BS can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.
HYH-BS is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range(-25--+125°C), is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
Application:
Certifications:
Product Specifications:
1. Width: 1mm - 150mm;
2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package
3. The extended range:50% - 100%;
4. Can provide free samples of 5-15 meter.
Product Parameter:
|
Product Sizes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Size |
Part Number |
Expansion Max |
Expansion Min |
Bulk Spool |
Shop Spool |
Lbs / 100' |
|
1/16" |
HYH-BS-2 |
3/32" |
3/64" |
1,000' |
250' |
0.22 |
|
1/8" |
HYH-BS-3 |
1/4" |
3/32" |
1,000' |
225' |
0.2 |
|
1/4" |
HYH-BS-6 |
7/16" |
1/8" |
1,000' |
200' |
0.3 |
|
5/16" |
HYH-BS-8 |
15/32" |
5/32" |
500' |
150' |
0.5 |
|
3/8" |
HYH-BS-10 |
1/2" |
3/16" |
500' |
125' |
0.57 |
|
7/16" |
HYH-BS-11 |
5/8" |
7/32" |
500 |
125 |
0.68 |
|
1/2" |
HYH-BS-12 |
3/4" |
1/4" |
500' |
100' |
0.77 |
|
5/8" |
HYH-BS-16 |
1" |
3/8" |
500' |
100' |
0.95 |
|
3/4" |
HYH-BS-24 |
1 1/4" |
1/2" |
250' |
75' |
1.2 |
|
1" |
HYH-BS-19 |
1 5/8" |
5/8" |
250' |
65' |
1.34 |
|
1 1/4" |
HYH-BS-32 |
1 3/4" |
3/4" |
250' |
50' |
1.6 |
|
1 1/2" |
HYH-BS-38 |
2 1/8" |
1" |
200' |
40' |
1.96 |
|
1 3/4" |
HYH-BS-45 |
2 3/4" |
1 1/4" |
200' |
30' |
2.45 |
|
2" |
HYH-BS-50 |
3 1/2" |
1 1/2" |
200' |
50' |
2.6 |
|
2 1/2" |
HYH-BS-63 |
3 5/8" |
1 3/4" |
200' |
50' |
3.8 |
|
3" |
HYH-BS-76 |
4 3/4" |
2 1/2" |
100' |
50' |
3.8 |
|
1, Other specifications can also be customized. |
||||||
|
2, Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3, Please inquire for details according to each specification. |
||||||
Storage:
1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.
2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.
Packing And Shipping:
1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.
3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.
3. What is your delivery time?
We will deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
Tag:
cotton braided sleeving, tinned cooper braided sleeving,Stainless steel braided sleeving.
Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
|
