| Brand Name: | HYH |
| Model Number: | 3MM-100MM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 500meters/spool. 100meters/spool, 100FT/spool |
| Payment Terms: | 100% T/T advance payment |

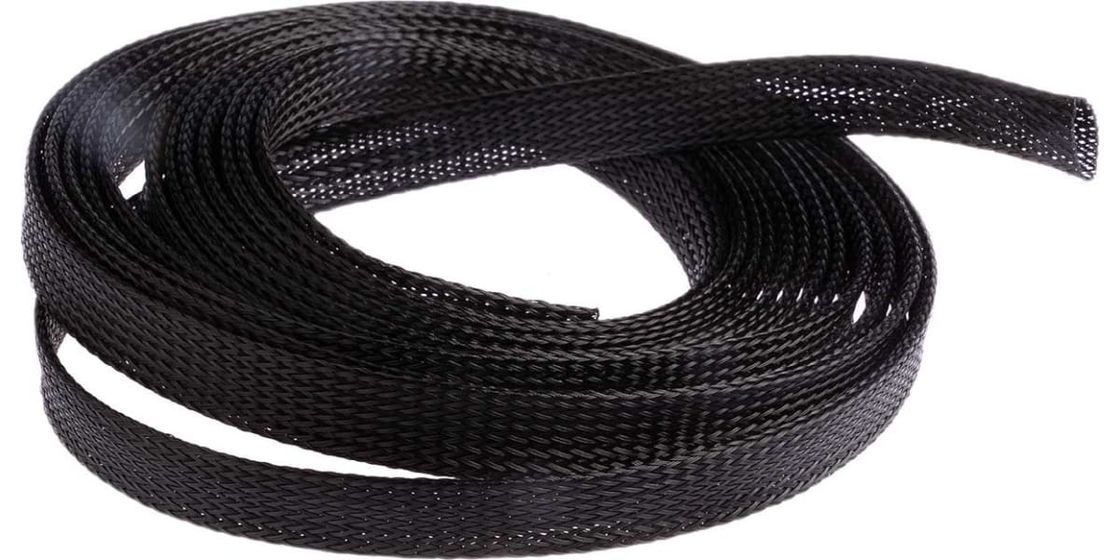

Flexibility Expandable Braided Pet Black Cable Sleeve 2.0mm 80.0mm
Customized Yellow+Black PET Braided Sleeve For Wiring Harness 3.0mm-15.0mm For Wiring Harness To classify and split out.
Product Details:
The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. HYH-BS can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.
HYH-BS is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range(-25--+125°C), is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.
Application:
Product Specifications:
1. Width: 1mm - 150mm;
2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package
3. The extended range:50% - 100%;
4. Can provide free samples of 5-15 meter.
Product Parameter:
| Product Sizes | ||||||
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
| 1/16" | HYH-BS-2 | 3/32" | 3/64" | 1,000' | 250' | 0.22 |
| 1/8" | HYH-BS-3 | 1/4" | 3/32" | 1,000' | 225' | 0.2 |
| 1/4" | HYH-BS-6 | 7/16" | 1/8" | 1,000' | 200' | 0.3 |
| 5/16" | HYH-BS-8 | 15/32" | 5/32" | 500' | 150' | 0.5 |
| 3/8" | HYH-BS-10 | 1/2" | 3/16" | 500' | 125' | 0.57 |
| 7/16" | HYH-BS-11 | 5/8" | 7/32" | 500 | 125 | 0.68 |
| 1/2" | HYH-BS-12 | 3/4" | 1/4" | 500' | 100' | 0.77 |
| 5/8" | HYH-BS-16 | 1" | 3/8" | 500' | 100' | 0.95 |
| 3/4" | HYH-BS-24 | 1 1/4" | 1/2" | 250' | 75' | 1.2 |
| 1" | HYH-BS-19 | 1 5/8" | 5/8" | 250' | 65' | 1.34 |
| 1 1/4" | HYH-BS-32 | 1 3/4" | 3/4" | 250' | 50' | 1.6 |
| 1 1/2" | HYH-BS-38 | 2 1/8" | 1" | 200' | 40' | 1.96 |
| 1 3/4" | HYH-BS-45 | 2 3/4" | 1 1/4" | 200' | 30' | 2.45 |
| 2" | HYH-BS-50 | 3 1/2" | 1 1/2" | 200' | 50' | 2.6 |
| 2 1/2" | HYH-BS-63 | 3 5/8" | 1 3/4" | 200' | 50' | 3.8 |
| 3" | HYH-BS-76 | 4 3/4" | 2 1/2" | 100' | 50' | 3.8 |
| 1,Other specifications can also be customized. | ||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
Storage:
1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.
2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.
Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
|
