Braided Sleeving, Colorful Life

|
| Place of Origin: | China |
| Brand Name: | HYH |
| Certification: | ROHS,REACH, UL, Halogen Free |
| Model Number: | HYH018 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100 - 500 meter / spool |
| Delivery Time: | 5 - 10 working days |
| Payment Terms: | T/T 100% advanced payment |
| Supply Ability: | 1000000 meters per month |
| Material: | PET,PP,Cotton | Color: | Customized |
|---|---|---|---|
| MOQ: | 1000 Meter | Usage: | For Audio Cable Protection And Management |
| Spec.: | Flexible, Expandable, Flame Resistant | Expansion: | 150%-200% |
| Package: | 100 - 500 Meter / Spool | Sample: | Available |
| High Light: | ROHS PET Expandable Braided Sleeving,ODM PET Expandable Braided Sleeving,ROHS fireproof wire sleeving |
||

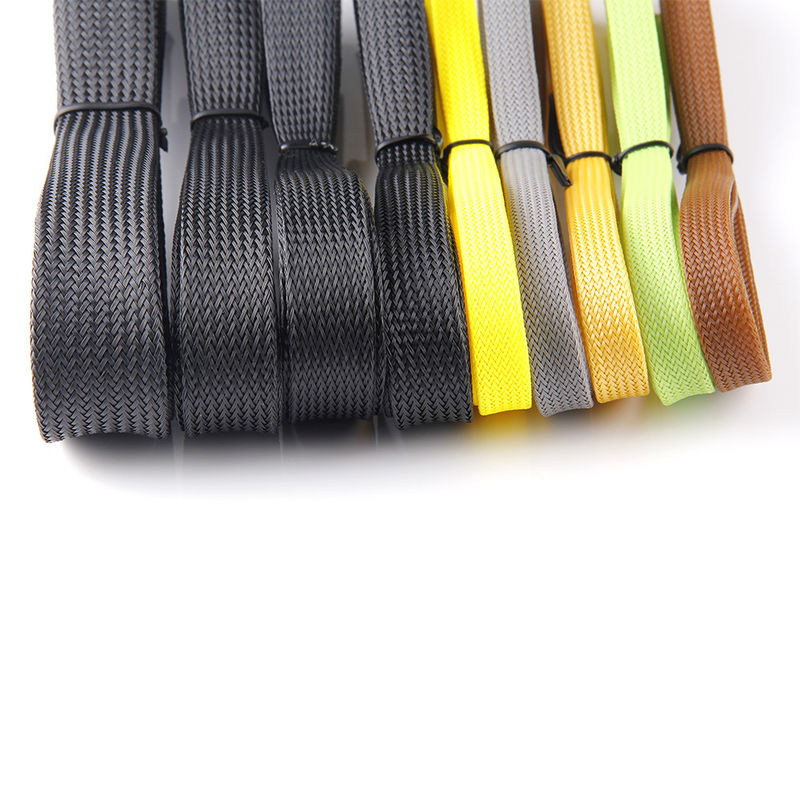

ROHS Cotton PP PET Expandable Braided Sleeving Flame Resistant
Expandable Braided Sleeves with a Wide Range of Colors & Sizes
Product Details:
The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
By adjusting the physical characteristics of the polyethylene terepthalate filaments, the engineers at HuiyunHai Tech have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives.
Application:
Product Specifications:
1. Width: 1mm - 150mm;
2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package
3. The extended range:150% - 200%;
4. Can provide free samples of 5-15 meter.
Product Parameter:
|
Product Sizes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Size |
Part Number |
Expansion Max |
Expansion Min |
Bulk Spool |
Shop Spool |
Lbs / 100' |
|
1/16" |
HYH-BS-2 |
3/32" |
3/64" |
1,000' |
250' |
0.22 |
|
1/8" |
HYH-BS-3 |
1/4" |
3/32" |
1,000' |
225' |
0.2 |
|
1/4" |
HYH-BS-6 |
7/16" |
1/8" |
1,000' |
200' |
0.3 |
|
5/16" |
HYH-BS-8 |
15/32" |
5/32" |
500' |
150' |
0.5 |
|
3/8" |
HYH-BS-10 |
1/2" |
3/16" |
500' |
125' |
0.57 |
|
7/16" |
HYH-BS-11 |
5/8" |
7/32" |
500 |
125 |
0.68 |
|
1/2" |
HYH-BS-12 |
3/4" |
1/4" |
500' |
100' |
0.77 |
|
5/8" |
HYH-BS-16 |
1" |
3/8" |
500' |
100' |
0.95 |
|
3/4" |
HYH-BS-24 |
1 1/4" |
1/2" |
250' |
75' |
1.2 |
|
1" |
HYH-BS-19 |
1 5/8" |
5/8" |
250' |
65' |
1.34 |
|
1 1/4" |
HYH-BS-32 |
1 3/4" |
3/4" |
250' |
50' |
1.6 |
|
1 1/2" |
HYH-BS-38 |
2 1/8" |
1" |
200' |
40' |
1.96 |
|
1 3/4" |
HYH-BS-45 |
2 3/4" |
1 1/4" |
200' |
30' |
2.45 |
|
2" |
HYH-BS-50 |
3 1/2" |
1 1/2" |
200' |
50' |
2.6 |
|
2 1/2" |
HYH-BS-63 |
3 5/8" |
1 3/4" |
200' |
50' |
3.8 |
|
3" |
HYH-BS-76 |
4 3/4" |
2 1/2" |
100' |
50' |
3.8 |
|
|
|
|
|
|
|
|
|
1, Other specifications can also be customized. |
||||||
|
2, Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. |
||||||
Storage:
1. The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.
2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.
Packing And Shipping:
1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.
3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.
3. What is your delivery time?
We will deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
