| Brand Name: | Huiyunhai |
| Model Number: | HYH-V |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 100 - 500 meters / spool |
| Payment Terms: | T/T, L/C |

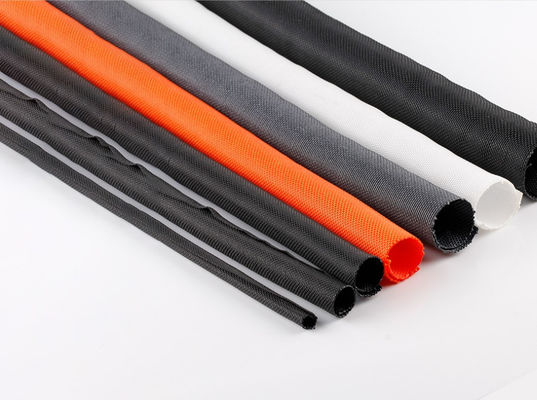

Dustproof Self Wrapping Split Braided Sleeving For Cable Harness
Split Tube Extra Coverage and Protection PP Expandable Self Wrap Braided Sleeves
PET Wrap closing braided sleeve provides the same flexibility and abrasion resistance as the PET Expandable Braided Sleeving.

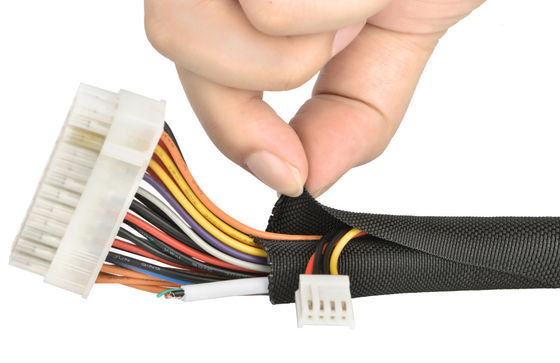

This self closing wrap braided sleeve allows you to work on segments of the cabling, rather than having to remove the entire covering and re-run all of its contents.
Technical data of
PP Self Closing Wrap Braided Expandable Sleeving For Cable Harness

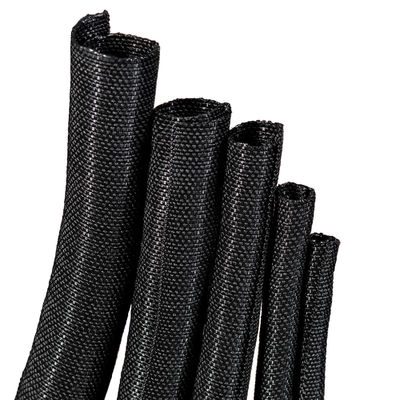

Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1
Our data description of
PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness
| Part No. |
I.D (d) |
Overlap (%) |
Max. Bundle Dia. | Packing (L) |
| HYH-006 | 6.0 mm | 25 | 7.0 mm | 100m |
| HYH-009 | 9.0 mm | 10.0 mm | 100m | |
| HYH-013 | 13.0 mm | 14.0 mm | 50m | |
| HYH-016 | 16.0 mm | 17.0mm | 25m | |
| HYH-019 | 19.0 mm | 20.0 mm | 25m | |
| HYH-025 | 25.0 mm | 26.0 mm | 25m | |
| HYH-032 | 32.0 mm | 33.0 mm | 25m | |
| HYH-038 | 38.0 mm | 40.0 mm | 25m | |
| HYH-050 | 50.0 mm | 52.0 mm | 25m |
FAQ:
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
|
