| Brand Name: | HYH Tech |
| Model Number: | 3MM-16MM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 500meters/spool. |
| Payment Terms: | L/C, T/T |

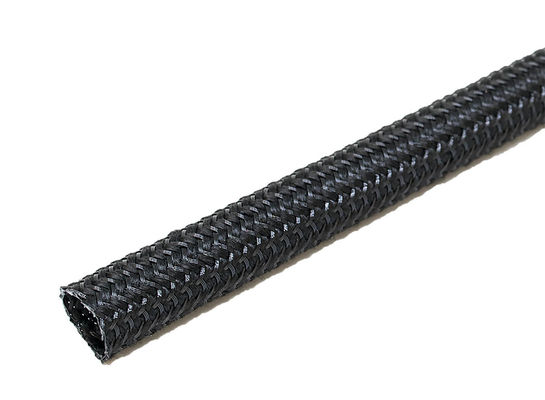

Durable PET Expandable Braided Sleeving Automotive Cables Protection
Flame Retardant Expandable PET Braided Sleeve Automotive Cables protection,Electronic wire management
Product Details:
The PET braided expandable sleeving (HYH-BS) products are designed to bundle and protect wire harnesses, cable assemblies, hoses, and other fluid- carrying tubing products. The product's self-extinguishing feature allows for easy assembly . A Light weight, durable product, HYH braided sleeve is composed of braided polyester monofilaments and multifilaments.
Product Parameter:
| Product Sizes | ||||||
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
| 1/16" | HYH-BS-2 | 3/32" | 3/64" | 1,000' | 250' | 0.22 |
| 1/8" | HYH-BS-3 | 1/4" | 3/32" | 1,000' | 225' | 0.2 |
| 1/4" | HYH-BS-6 | 7/16" | 1/8" | 1,000' | 200' | 0.3 |
| 5/16" | HYH-BS-8 | 15/32" | 5/32" | 500' | 150' | 0.5 |
| 3/8" | HYH-BS-10 | 1/2" | 3/16" | 500' | 125' | 0.57 |
| 7/16" | HYH-BS-11 | 5/8" | 7/32" | 500 | 125 | 0.68 |
| 1/2" | HYH-BS-12 | 3/4" | 1/4" | 500' | 100' | 0.77 |
| 5/8" | HYH-BS-16 | 1" | 3/8" | 500' | 100' | 0.95 |
| 3/4" | HYH-BS-24 | 1 1/4" | 1/2" | 250' | 75' | 1.2 |
| 1" | HYH-BS-19 | 1 5/8" | 5/8" | 250' | 65' | 1.34 |
| 1 1/4" | HYH-BS-32 | 1 3/4" | 3/4" | 250' | 50' | 1.6 |
| 1 1/2" | HYH-BS-38 | 2 1/8" | 1" | 200' | 40' | 1.96 |
| 1 3/4" | HYH-BS-45 | 2 3/4" | 1 1/4" | 200' | 30' | 2.45 |
| 2" | HYH-BS-50 | 3 1/2" | 1 1/2" | 200' | 50' | 2.6 |
| 2 1/2" | HYH-BS-63 | 3 5/8" | 1 3/4" | 200' | 50' | 3.8 |
| 3" | HYH-BS-76 | 4 3/4" | 2 1/2" | 100' | 50' | 3.8 |
| 1,Other specifications can also be customized. | ||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters.
2. Can you offer free sample?
Yes, we can provide free samples.
3. What is your delivery time?
We will deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
|
