   Braided Sleeving, Colorful Life

Home ProductsSelf Wrapping Split Braided Sleeving

Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective

Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective

Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective
Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective
Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective
Product Details:
Place of Origin: Shenzhen of China
Brand Name: HYH
Certification: UL, RoHS, REACH, SGS, ISO, Halogen Free
Model Number: HYH-Self Wrap
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 500 meters / spool
Delivery Time: 5-15 working days
Payment Terms: T/T 100% advance payment
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: PET Monofilaments Size: 6mm - 36mm
Color: Black, White, Grey Cutting Tool: Hot Knife
Feature: Cable And Wire Harnesses Protection,Noise Reduction Protective Wrap Sleeves Certificates: UL, RoHS, REACH, SGS, ISO, Halogen Free
Application: Wire Harnesses, Cable Assemblies, Hoses And Other Fluid- Carrying Tubing Products Brand Name: HYH
High Light:

Halogen Free Nylon Multifilament Braided Sleeving

,

REACH Nylon Multifilament Braided Sleeving

,

REACH nylon braided cable wrap

Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective

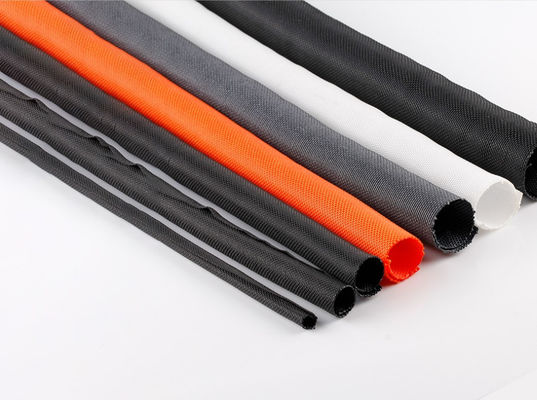

Uniquely Designed Split Tube PET Expandable Self Wrap Noise Reduction Protective Wrap Braided Sleeves



Huiyunhai products are designed to bundle and protect wire harnesses, cable assemblies, hoses and other fluid- carrying tubing products. The self-wrapping, self-extinguishing feature allows for easy assembly and removal if necessary. A light weight and durable product



What's the special of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harnesses

1. Flame-retardant and halogen-free.

2. It offers durable abrasion resistance in a wide range of industrial applications.

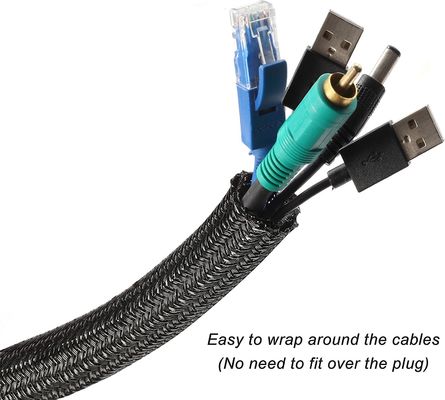

3. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.

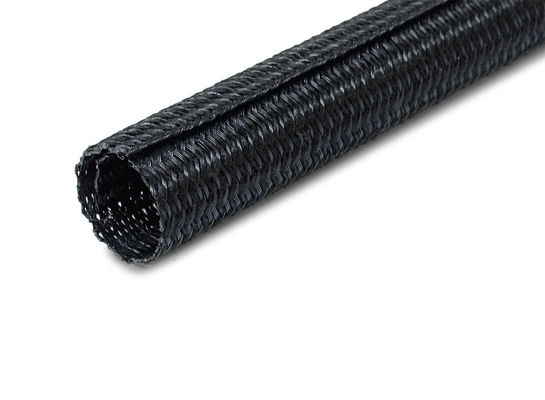

Self-Closing Braided Sleeving is made of PET monofilament and PET multifilament or PET monofilament and Nylon multifilament,and then it is naturally rolled into a roll by a special process.The winding coverage can reach 25%.Easy to install and remove,beautiful,flame retardant,anti-wear.Mainly used for wiring of automobiles,military,ship, communication cable.





Application of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness



Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.



Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.



Technical data of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness


1. Material: Polyester

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1





Our data description of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m







Halogen Free Nylon Multifilament Braided Sleeving Noise Reduction Protective 0



FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
