PET Expandable Braided Sleeving
>
Expandable Pet Braided Cable Sleeve 1.5 Inch Flame Retardant Monofilament

Expandable Pet Braided Cable Sleeve 1.5 Inch Flame Retardant Monofilament

Brand Name: HYH
Model Number: 3MM-60MM
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100 - 500meters/spool.
Payment Terms: T/T Advanced 100% payment
Detail Information
Place of Origin:
Shenzhen of China
Certification:
IATF16949, UL, RoHS, SGS, ISO,Halogen free
Material:
PET Flame Retardant Monofilament
Color:
Black,white,grey
MOQ:
1000 Meter
Usage:
For Covering Cables, Wire Harnesses Management, Industrial Hoses With Additional Protection.
Special:
Easy To Assembly.Abrasion Resistant.Flame Retardant.Neat Appearance
Expansion:
150%-200%
Sample:
Available
Supply Ability:
3000000+METERS+PER MONTH
High Light:

Pet Braided Cable Sleeve 1.5 Inch

,

Expandable Pet Braided Cable Sleeve

,

pet expandable sleeving

Product Description

Expandable Pet Braided Cable Sleeve 1.5 Inch Flame Retardant Monofilament



Flame Retardant Expandable PET Braided Sleeve Extra Coverage and Protection from Tightly Woven Material

Product Details:

HYH Tech Tight Weave is designed for use in applications where a balance between economy and optimum coverage and abrasion resistance is required.

The tightly braided construction increases the coverage, wear factor and improves security in any type of harness or cable bundle.

Tight Weave provides substantially greater coverage and protection from abrasion than our standard Flexo PET sleeving.

Product Features:

1, With certificate of IATF16949


2. Flame-retardant and halogen-free.

3. It offers durable abrasion resistance in a wide range of industrial applications.

4. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.



5, The quality is as good as Techflex Flexo PET, Flexo F6...

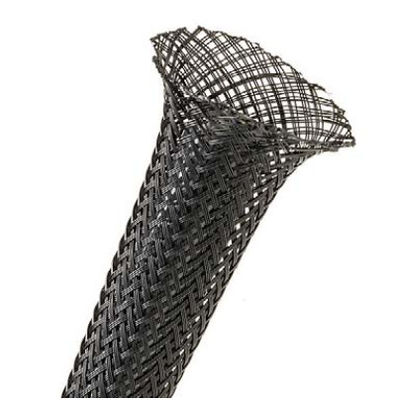

Expandable Pet Braided Cable Sleeve 1.5 Inch Flame Retardant Monofilament 0

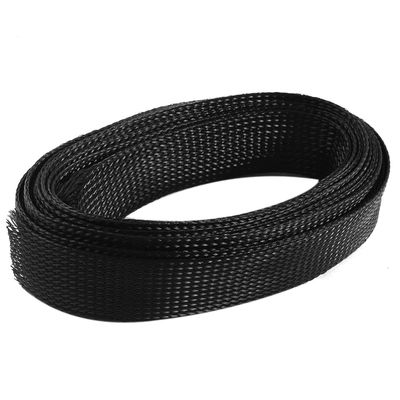

Expandable Pet Braided Cable Sleeve 1.5 Inch Flame Retardant Monofilament 1





Product Parameter:



Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8





FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
