| Brand Name: | HYH |
| Model Number: | HYH-PET Sleeving |
| MOQ: | 1000 meter |
| Price: | Negotiable |
| Packaging Details: | 500m/spool, with master carton |
| Payment Terms: | L/C, T/T |

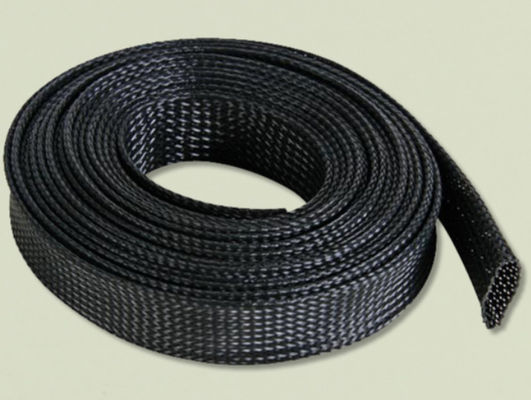

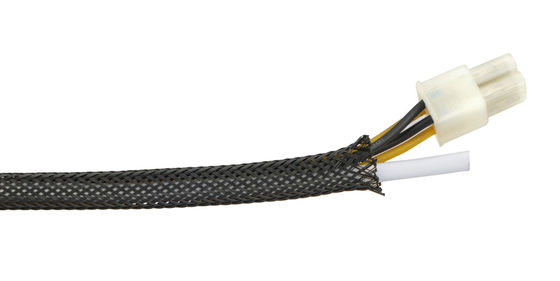

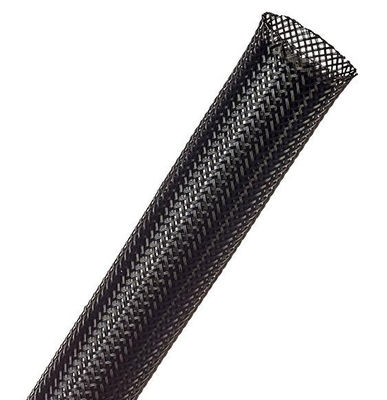

Flameproof PET Expandable Braided Sleeving Electrical Wire Protective Sleeves
Description of Flame Resistance Electrical Wire Protective Sleeves
Pet braided expandable cable sleeving is sleeved by the polyester monofilament.It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety. Others can be customized according to customer demands including a variety of colors, patterns and all kinds of UV fluorescence color.
Quick detail of Braided Sleeving
1. Operating temperature: -50°C~150°C
2. Melting point: 250±5°C.
3. Flammability: UL VW-1
4. Standard color: White, Black, Gray
5. Cutting tool: Hot knife
6. Certificate: IATF16949, UL, RoHS, SGS, ISO,Halogen free
Specification of Braided Sleeving
| Width | Expandable range | Packing (m/roll) |
||
| Inch | mm | Min. | Max. | |
| 1/8 | 3 | 1 | 6 | 500 |
| 1/4 | 6 | 3 | 9 | 500 |
| 5/16 | 8 | 5 | 16 | 400 |
| 3/8 | 10 | 7 | 19 | 400 |
| 1/2 | 12 | 8 | 24 | 300 |
| 5/8 | 15 | 10 | 27 | 300 |
| 3/4 | 20 | 14 | 30 | 250 |
| 1 | 25 | 18 | 35 | 200 |
| 1 1/4 | 30 | 20 | 50 | 150 |
| 1 1/2 | 40 | 30 | 60 | 100 |
| 1 3/4 | 45 | 35 | 75 | 100 |
| 2 | 50 | 40 | 80 | 100 |
| 2 1/2 | 64 | 45 | 105 | 100 |
| 3 | 76 | 64 | 120 | 100 |
Feature Of Braided Sleeving
1. Light weight
2. Flexible
3. Insulation
4. UV Resistant
5. Decoration
6. Flame-retardant
7. Durable abrasion resistance
8. Resistant to chemical
Application of Braided Sleeving
1. Cable protection
2. Wire harnesses management
3. Eletronics accessories
4. Audio cable
5. Automotive
6. Industry cable protection
Why Choose US:
1. We are OEM and ODM factory with 17 years experience for braided sleeves products
-- with more than 300 fully automatic high speed braided sleeving machines
2. Strict quality control system which enhances customers' competitiveness:
-- 100% test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
-- Samples are free for many items
4. Experienced R&D team, be customer's professional solution consultant:
-- Professional R&D team
-- Powerful ODM Ability to Afford Customized Design Requirement
|
