|Place of Origin:||Shenzhen of China|
|Brand Name:||HYH TECH|
|Certification:||UL, RoHS, REACH, SGS, ISO|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||100 - 500 meters/spool|
|Delivery Time:||5-10 working days|
|Supply Ability:||3 million meters per month|
|Color:||Customized||Cutting Tool:||Hot Cutting Knife|
|Feature:||Flame Retardant, Cable And Wire Harnesses Protection||Certificates:||UL, RoHS, REACH, SGS, ISO|
PET Self Closing Braided Wire Wrap,
SGS Self Closing Braided Wire Wrap,
SGS Braided Wire Wrap Sleeve

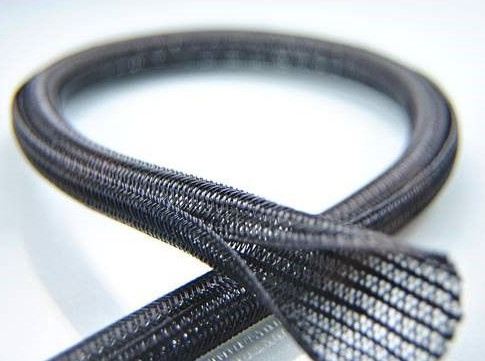

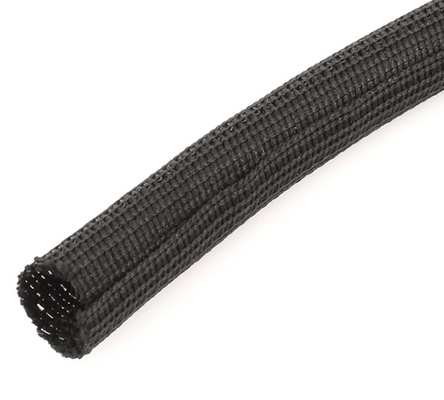

Cable Harness PET Self Closing Braided Wire Wrap Sleeve SGS ISO Certificates
Description of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness
PET Self Closing Wrap Braided Cable Sleeve has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry.
The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Wire harness professionals will also appreciate the increased abrasion resistance PET Self Closing Wrap Braided Cable Sleeve will provide to their cable assemblies.
The combination of flame retardance, ease of installation, and complete coverage makes PET Self Closing Wrap Braided Cable Sleeve to be an ideal solution for many commerical and aerospace applications.
Application of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness
Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
Dose not trap heat or humidity Rot-free , Self-fitting over many shapes and sizes Self-extinguishing when used to encase typical non-flammable wires or cable Fray resistant.
Technical data of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness
1. Material: Polyester
2. Operating range: - 50ºC - +150ºC
3. Melt Point: 250ºC+-5ºC
4. Flammability: VW-1

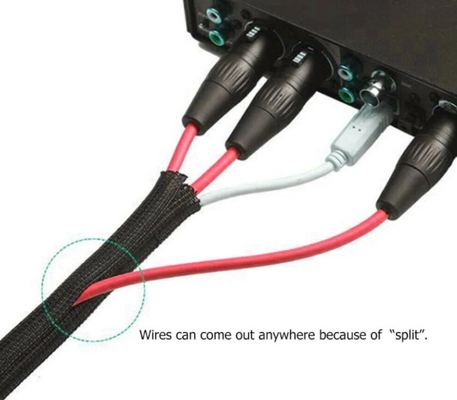

Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.
Our data description of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness
|Max. Bundle Dia.||Packing
|HYH-006||6.0 mm||25||7.0 mm||100m|
|HYH-009||9.0 mm||10.0 mm||100m|
|HYH-013||13.0 mm||14.0 mm||50m|
|HYH-019||19.0 mm||20.0 mm||25m|
|HYH-025||25.0 mm||26.0 mm||25m|
|HYH-032||32.0 mm||33.0 mm||25m|
|HYH-038||38.0 mm||40.0 mm||25m|
|HYH-050||50.0 mm||52.0 mm||25m|
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Contact Person: sales
