Heat Resistant Wire Sleeve
>
Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving

Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving

Brand Name: HYH Tech
Model Number: HYH-080
MOQ: 1000m
Price: Negotiable
Packaging Details: reel with carton
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
RoHS, REACH, SGS, ISO
Material:
Silicone Thermal Conductive Particles
Color:
White
Size:
3mm - 50mm
Type:
Insulation Tube
Operating Range:
-60°C-600°C
Certification:
RoHS, REACH, SGS, ISO
Supply Ability:
1000000 m per month
High Light:

50mm Heat Resistant Wire Sleeve

,

3mm Heat Resistant Wire Sleeve

,

600c Htg Fiberglass Sleeving

Product Description

Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving





Description:


      HYH TECH heat-treated fiberglass sleeving is a good solution for where has high requirement for high working temperature, but low voltage levels. Its flexibility and expandability make it easy to over irregular shapes. It also provides abrasion and flame resistance.

Application:

It is widely used in heating components, carbon brushes, toasters, coffee-makers etc.

Technical data:

Operating range: -60°C-600°C

Breakdown voltage: 700V

Flammability: Self-extinguish

Color: White

Cutting tool: Scissors

Approval: RoHS



Specification
item
value
Working temperature
-60 C~ 600 C
Rated voltage
1.2KV / 1.5V / 2.5KV / 4KV / 7KV / 10KV
Uses
This product is widely used in commercial electronics, household appliances insulation, electronic transformers, automotive wiring
harness, energy-saving lamps, electronic equipment, equipment, internal cable protection and insulation treatment.
Color
white
Type
Insulation tube





Datasheet:



Part No. I.D.(I) Wall thickness(t) Packing (L)
HYH-FG-003 3 0.2 100 m/roll
HYH-FG-004 4 0.3 100 m/roll
HYH-FG-005 5 0.3 100 m/roll
HYH-FG-006 6 0.3 100 m/roll
HYH-FG-007 7 0.35 100 m/roll
HYH-FG-008 8 0.35 50 m/roll
HYH-FG-010 10 0.35 50 m/roll
HYH-FG-012 12 0.35 50 m/roll
HYH-FG-015 15 0.43 50 m/roll
HYH-FG-018 18 0.43 50 m/roll
HYH-FG-020 20 0.43 50 m/roll

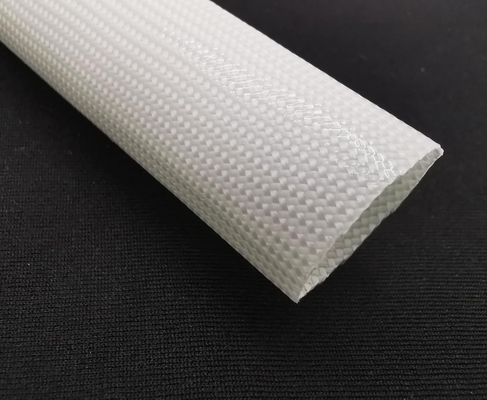

Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving 0

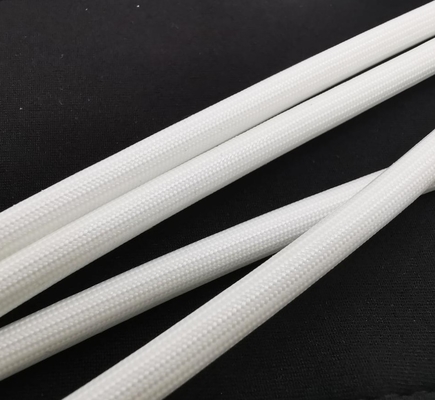

Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving 1

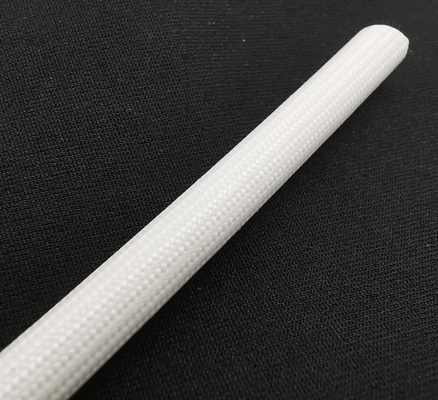

Electronics 50mm Heat Resistant Wire Sleeve 600c Htg Fiberglass Sleeving 2



FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. if your order is big, the payment term could be negotiable.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDP.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
