PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection

PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection

PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection
PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection
PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection
Product Details:
Place of Origin: China
Brand Name: HYH Tech
Certification: UL, RoHS, REACH, SGS
Model Number: HYH-306
Payment & Shipping Terms:
Minimum Order Quantity: 1000 m
Price: Negotiable
Packaging Details: 100 - 500 meters/spool
Delivery Time: 5-10 working days
Payment Terms: T/T 100% advanced payment
Supply Ability: 3 million meters per month
Contact Now
Detailed Product Description
Material: PET Monofilament Size: Customized
Color: White Cutting Tool: Hot Cutting Knife
Feature: Flame Retardant, Cable Protection And Management Certificates: UL, RoHS, REACH, SGS
High Light:

RoHS Self Wrapping Split Braided Sleeving

,

6mm Self Wrapping Split Braided Sleeving

,

PET Monofilament fire resistant cable sleeves

PET Flame Retardant Self Wrap Cable Sleeving For Cable Protection And Management







Description

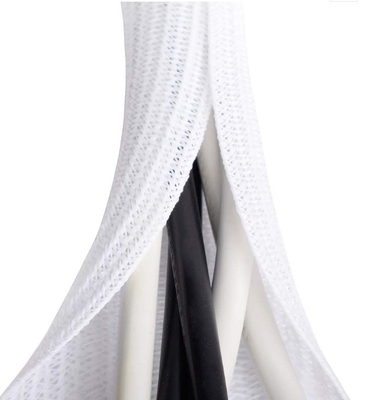

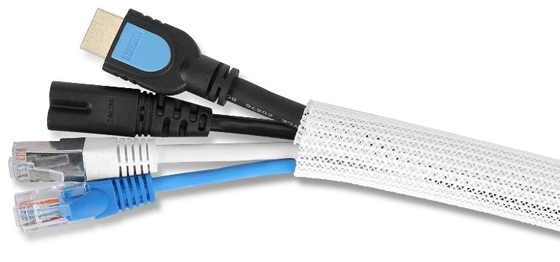

  • From HYH TECH a high-quality flexible self-closing woven braided PET (Polyester) cable sleeving with a unique wraparound design for providing quick and easy cable protection and management. This sleeving eliminates the need for straps or cable ties to hold it in place, simply insert your cables through the side split or entry and the sleeve will spring back closed and wrap securely to itself. Once fitted this braided sleeve fits snugly around your cables or wire harness keeping them in place. The sleeving, due to its open wrap around design, can also be installed on completed assemblies as well as being opened up to allow for cable inspection and maintenance.





Technical data of PET Self Closing split Wrap Braided Expandable Sleeving For Cable and Harness


1. Material: Polyester, flame retardant

2. Operating range: - 50ºC - +150ºC

3. Melt Point: 250ºC+-5ºC

4. Flammability: VW-1



5. Features: Flame retardant, High temprature resistance, abrasion resistance.





Self closing sleeve is a non-expandable sleeve woven from monofilament weft and multi-filament warp. provides a lightweight, cost effective and tough solution for protection of a wide range of wire and cable. Its inherent flexibility allows it to be bend, coil and fit with irregular shapes while its open design allows it to be install on finished assemblies quickly.





Our data description of PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm   10.0 mm 100m
HYH-013 13.0 mm   14.0 mm 50m
HYH-016 16.0 mm   17.0mm 25m
HYH-019 19.0 mm   20.0 mm 25m
HYH-025 25.0 mm   26.0 mm 25m
HYH-032 32.0 mm   33.0 mm 25m
HYH-038 38.0 mm   40.0 mm 25m
HYH-050 50.0 mm   52.0 mm 25m







PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection 0



PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection 1



PET Monofilament Self Wrapping Split Braided Sleeving For Cable Protection 2







FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
