Self Wrapping Split Braided Sleeving
>
Lightweight 1 Inch Self Wrapping Split Braided Sleeving Flame Retardant

Lightweight 1 Inch Self Wrapping Split Braided Sleeving Flame Retardant

Brand Name: HYH
Model Number: HYH-PSW
MOQ: Negotiable
Price: Negotiable
Packaging Details: 300 meters / spool
Payment Terms: T/T advanced 100%
Detail Information
Place of Origin:
China
Certification:
RoHS, REACH, UL, Halogen free
Material:
PP Self Wrapping Sleeving
Size:
25mm
Color:
Black, White
Cutting Tool:
Hot Knife Cutting
Feature:
Lightweight And Durable Flame Retardant
Certificates:
RoHS, REACH, UL, Halogen Free
Application:
For Automotive Cables Protection
Brand Name:
HYH
Supply Ability:
5 million meters per month
High Light:

1 Inch Self Wrapping Split Braided Sleeving

,

Lightweight Self Wrapping Split Braided Sleeving

,

Flame Retardant self closing braided wire wrap

Product Description

Lightweight 1 Inch Self Wrapping Split Braided Sleeving Flame Retardant



    HYH PET self closing wrap sleeving offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables.The special open structure allows to be installed after other components, for example copper terminals and connectors.
     A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance. It is woven from PET monofilaments and multifilament PET yarns, and then naturally wrapped using special braiding technology and braiding machines. The degree of edge overlap reaches 25%~50%. It is a self-closing wrappable sleeving used to bundle and protect wire harnesses and cable assemblies in areas where space constraints restrict the use of traditional sleeving. It is very easy for self closing wrap to install, and it features an outstanding appearance, flame retardant, wear resistance and looks more tidy.
    The design is great for channeling and protecting wires that run under the carpet or in the headliner of automobiles.

Application:
It is widely used in industrial machinery, electrical appliances, audio and video cables, wire harnesses management and protection.
It is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.

Technical data:
Wrap material: Polyester multifilament
Hook&loop material: Polyamide
Operating range: -50°C ~ + 150°C
Melt point: 240 ± 10°C
Flammability: VW-1
Standard colours: black
Certificate: ROHS , Halogen Free
Cutting tool: hot knife





Our data description of



PET Self Closing Wrap Braided Expandable Sleeving For Cable Harness





Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia. Packing
(L)
HYH-006 6.0 mm 25 7.0 mm 100m
HYH-009 9.0 mm 25 10.0 mm 100m
HYH-013 13.0 mm 25 14.0 mm 50m
HYH-016 16.0 mm 25 17.0mm 25m
HYH-019 19.0 mm 25 20.0 mm 25m
HYH-025 25.0 mm 25 26.0 mm 25m
HYH-032 32.0 mm 25 33.0 mm 25m
HYH-038 38.0 mm 25 40.0 mm 25m
HYH-050 50.0 mm 25 52.0 mm 25m

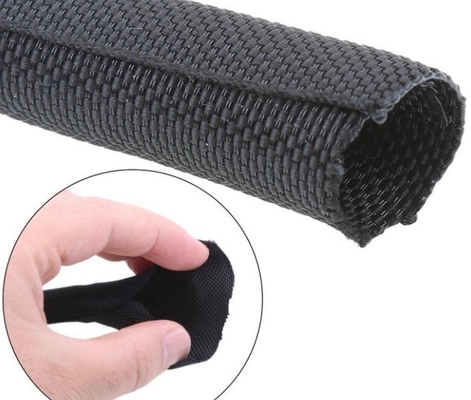

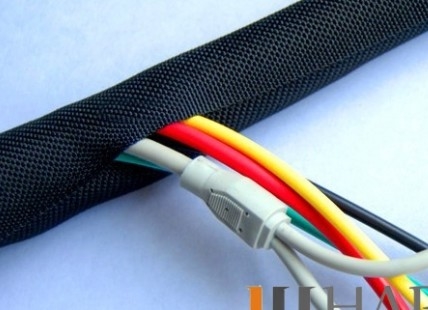

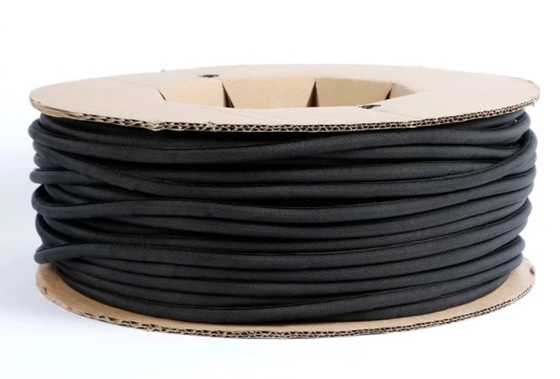

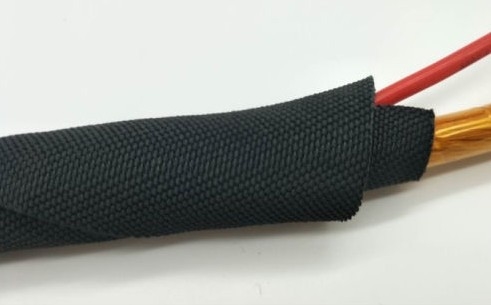

Lightweight 1 Inch Self Wrapping Split Braided Sleeving Flame Retardant 0

Lightweight 1 Inch Self Wrapping Split Braided Sleeving Flame Retardant 1



FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
