   Braided Sleeving, Colorful Life

Home ProductsPET Expandable Braided Sleeving

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance
REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance
REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance
Product Details:
Place of Origin: China
Brand Name: HYH
Certification: UL, RoHS, SGS, REACH, ISO, IATF16949
Model Number: HYH-016
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100m/spool, with standard export carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 million meters per month
Contact Now
Detailed Product Description
Features: Flame Retardant, Abrasion Resistance Material: PET
Size: 1 Inch Color: Black, Grey, White,Silver
Print: Customized LOGO: As Your Drawing
Packing: 100m/spool, With Master Carton
High Light:

1 Inch PET Expandable Braided Sleeving

,

REACH PET Expandable Braided Sleeving

,

REACH braided wire sheathing

1 Inch Flame Retardant Cable Protection And Organizer PET Expandable Braided Sleeving



      HYH Tech Flame Retardant PET 1 Inch PET Expandable Braided Sleeving is made of flame retardant and halogen free polyester monofilament. It features a durable abrasion resistance, even in different industrial applications for cable protection and organization. The open weave design allows for easy installation on bundles of hoses and cables, even when the hoses and cables are bulky or have large connectors. Once fully expanded, the polyester sleeving is 1.5-2 times larger than the natural width. It is commonly used to cover cables, wire harnesses, tubes, and industrial hoses that require additional protection.Customized Flame Retardant Braided Sleeving Abrasion Resistant Same Quality Level As Techflex Flexo PET.



  • Size: Diameter: 1"| Length: 100 Feet | Color: Black. Diameter expands by 50%. Our wire sleeve is made from PET
  • Operating temp(degree F.):-50°C - +150°C  Melt temp: 240±10°C
  • Our braided cable sleeve is used in automotive Hifi audio speaker hdmi wire
  • Our PET expandable braided sleeving : UL | ROHS | REACH | Halogen Free
  • Our cable sleeving protects and prolongs the life of wires. Economical and easy to install
  • Recommended: Cut Braided Sleeving with a HOT KNIFE to prevent fraying, if a Hot Knife is not available, make sure to sear the edges with another heat source (example: use the flame from a lighter)



     PET high leve flame retardant is made of UL94 V0 grade PET monofilament (our UL number: E252099 ), which has good scalability, wear resistance and flame retardant. The biggest feature of this network management is that its flame retardant grade can reach the VW-1 level.



Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: black, grey

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife



Main Properties:



1, With certificate of UL:  E252099


2. Flame-retardant and halogen-free.

3. It offers durable abrasion resistance in a wide range of industrial applications.

4. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.



5, The quality is as good as Techflex Flexo PET, Flexo F6...

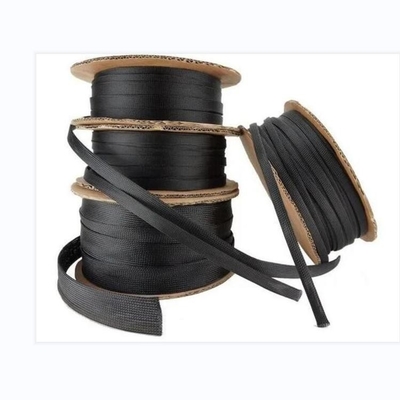

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance 0

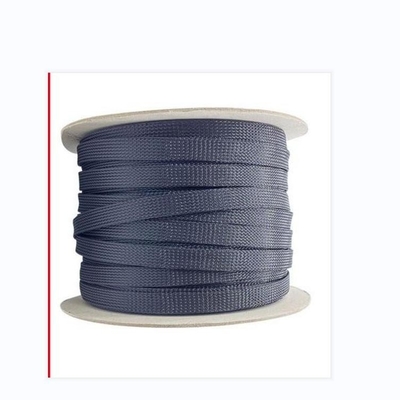

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance 1

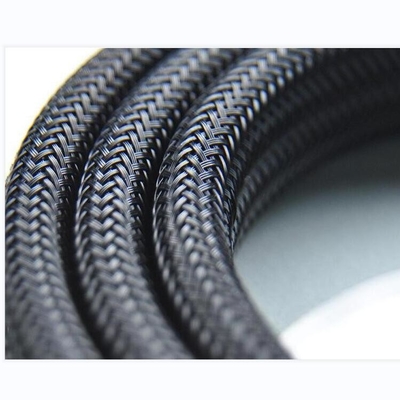

REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance 2



REACH 1 Inch PET Expandable Braided Sleeving Abrasion Resistance 3





Product Parameter:



Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.





FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
