Home ProductsPET Expandable Braided Sleeving

Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable

Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable

Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable
Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable
Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable
Product Details:
Place of Origin: China
Brand Name: HYH
Certification: UL, RoHS, REACH, Halogen free
Model Number: HYH-018
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Pet Braided Sleeving Material: Pet Monofilament
Size: Customized Fuction: Wear Resistant, Flame Retardant

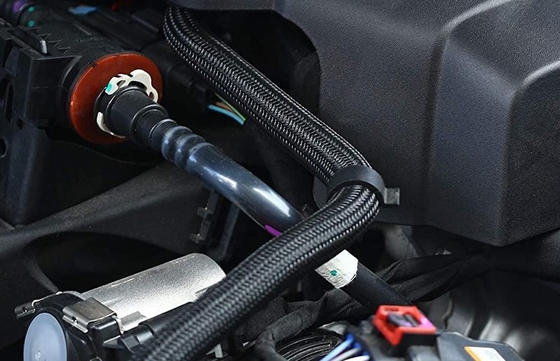

Lead Time: 5 Days Usage: Cable Harness, Automotive Hose Protection
High Light:

Polyester Automotive Hose Sleeving

,

Polyester Expandable Braided Cable

,

Flexo Pet Expandable Braided Cable

Automotive Hose Sleeving Wire Harnesses Sleeving Flexo Pet Expandable Braided Cable Flexo Pet Expandable Sleeving

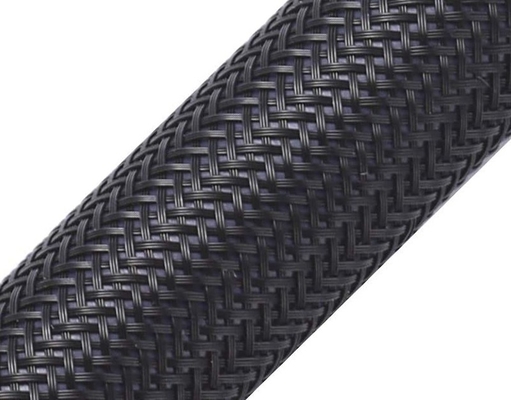

Product feacture of PET Braided Expandable Sleeving



HYH Dust Extractors hose sleeving is made of flame retardant and halogen free polyester monofilament and PP yarn. It features a durable abrasion resistance, even in different industrial applications for cable protection and organization. The open weave design allows for easy installation on bundles of hoses and cables, even when the hoses and cables are bulky or have large connectors. Once fully expanded, the polyester sleeving is 1.5-2 times larger than the natural width. It is commonly used to cover cables, wire harnesses, tubes, and industrial hoses easily.



  • Size: Diameter: 1"| Length: 100 Feet | Color: Black. Diameter expands by 50%. Our wire sleeve is made from PET
  • Operating temp(degree F.):-50°C - +150°C Melt temp: 240±10°C

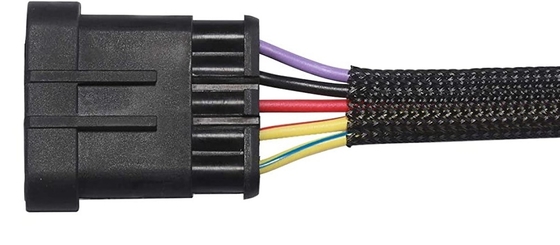

  • Our braided cable sleeve is used in automotive Hifi audio speaker hdmi wire
  • Our PET expandable braided sleeving : UL | ROHS | REACH | Halogen Free
  • Our cable sleeving protects and prolongs the life of wires. Economical and easy to install
  • Recommended: Cut Braided Sleeving with a HOT KNIFE to prevent fraying, if a Hot Knife is not available, make sure to sear the edges with another heat source (example: use the flame from a lighter)

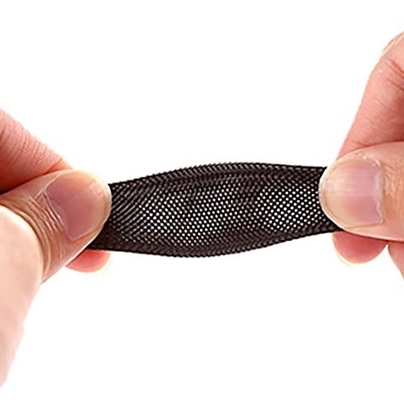

Excellent softness and flexible, easy to bend, elastic, easy to wire operation, good stretchability, elasticity and wear resistance, can maintain softness in a large temperature range, can inhibit chemical corrosion, UV and friction. The unique mesh features feature good ventilation and instant diffusion of wire heat.

The product has smooth surface, bright color and various patterns. It is an ideal product for line management and bundle application of electronics, automobiles, airplanes, ships, industry and home. For example, DVI wire mesh sets, HDMI wire net sets, motor vehicle engine line dressing, home theater wire management, computer chassis wire layout, office line management, car wiring harness, water tube protection.



Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: black, grey

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife



Main Properties:



1, With certificate of UL: E252099


2. Flame-retardant and halogen-free.

3. It offers durable abrasion resistance in a wide range of industrial applications.

4. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.



5, The quality is as good as Techflex Flexo PET, Flexo F6...





Notes for braided sleeving



1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.





Model Natural
OD(MM)
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
  Model Natural
OD(MM))
Max Expand
OD(MM)
N.W(g) Packing
(M/spool)
161020 1 2 2.5 1000   641025 8 16 7 500
161025 1 2 2.5 1000   642020 12 25 10.5 500
162020 2 4 3 1000   642025 14 30 12 500
162025 3 6 3 1000   643020 16 32 14 500
163020 3 6 4 1000   643025 18 35 17 250
163025 4 8 4 1000   721020 8 16 6.5 800
241020 2 4 3 1000   721025 9 18 7.5 800
241025 2 4 3 1000   722020 14 28 12 500
242020 3 6 4.5 1000   722025 16 32 14 500
242025 4 8 4.5 1000   723020 18 35 16 300
243020 4 8 5 800   723025 23 45 19 200
243025 5 10 5.5 500   961020 10 20 8 500
321020 3 6 3 1000   961025 11 22 9 560
321025 3 6 3 1000   962020 20 40 14 500
322020 5 10 4.5 500   962025 25 50 16 500
322025 6 12 4.5 500   963020 28 55 18 300
323020 6 12 6 500   963025 35 70 25 100
323025 7 14 7.5 500   964020 30 60 26 100
401020 4 8 3.5 800   964025 36 72 28 100
401025 4 8 3.5 800   965025 40 80 46 100
402020 6 12 5.5 500   1201020 10 20 10 300
402025 8 14 6 500   1201025 12 22 13 300
403020 8 16 7 600   1202020 22 45 15 200
403025 10 20 10 400   1202025 26 32 18 100
481020 5 10 4 1000   1203020 32 65 26 100
481025 6 12 4.5 500   1203025 38 75 32 100
482020 8 16 5.5 500   1204020 40 80 30 100
482025 10 20 7.5 500   1204025 45 90 40 100
483020 10 20 8.5 600   1205025 50 100 50g 50
483025 12 25 12 300   1206025 64 130 60g 50
561020 6 12 5 1000   1207025 76 150 70g 50
561025 7 14 6 800   1486025 80 160 80g 50
562020 10 20 8.5 500   1487025 90 180 90g 50
562025 12 25 10 500   1488025 100 200 100g 50
563020 14 30 11 500   flat1053020
563025 16 32 15 250   flat1053025
641020 7 14 6 1000   flat1054025









Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable 0







Polyester Automotive Hose Sleeving Flexo Pet Expandable Braided Cable 1





FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
