Braided Sleeving, Colorful Life

|
| Place of Origin: | China |
| Brand Name: | HYH |
| Certification: | UL, RoHS, SGS, REACH, ISO, IATF16949 |
| Model Number: | HYH-019 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100m/spool, with standard export carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5 million meters per month |
| Features: | Flame Retardant | Material: | PET Monofilament |
|---|---|---|---|
| Size: | 1-100mm | Color: | Colorful |
| Application: | HDMI Cables | LOGO: | Customized |
| Packing: | Spool + Carton | ||
| High Light: | 100mm PET Expandable Braided Sleeving,Flame Retardant PET Expandable Braided Sleeving,100mm heat proof cable sleeve |
||

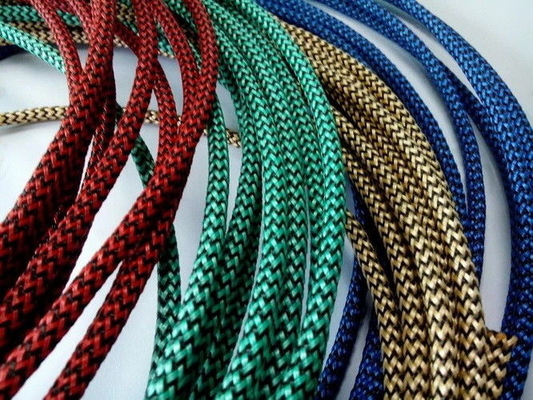

100mm HDMI Cable PET Expandable Braided Sleeving Flame Retardant

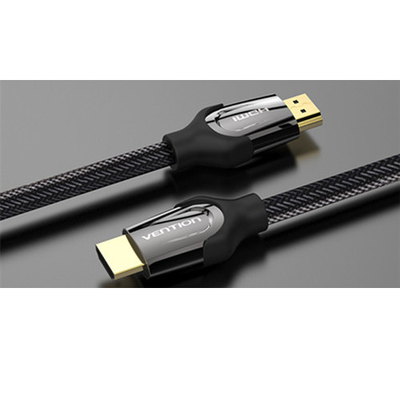

HYH Tech HDMI Cable Sleeving is made of flame retardant and halogen free polyester monofilament. It features a durable abrasion resistance, even in different industrial applications for cable protection and organization. Expecially for HDMI cables protection and management. It is easy to install. And the HDMI cable sleeving is high efficiently to prolong the life of the cables with very lower cost.
PET high leve flame retardant is made of UL94 V0 grade PET monofilament (our UL number: E252099 ), which has good scalability, wear resistance and flame retardant. The biggest feature of this network management is that its flame retardant grade can reach the VW-1 level.
Technical data:
Material: Polyester
Operating range: -50°C - +150°C
Melt point: 240±10°C
Flammability: UL VW-1
Standard colors: black, grey
Certificate: UL, RoHS, REACH, Halogen Free
Cutting tool: hot knife
Main Properties:
1, Our UL certificate number: E252099
2. Abrasion resistance, Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses
and cables, even if some with bulky or large connectors.
5, The quality is as good as Techflex Flexo PET, Flexo F6...
6, Low cost for the application of HDMI cables protection and prolong the life of the cables.
Product Parameter:
| Product Sizes | ||||||
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
| 1/16" | HYH-BS-2 | 3/32" | 3/64" | 1,000' | 250' | 0.22 |
| 1/8" | HYH-BS-3 | 1/4" | 3/32" | 1,000' | 225' | 0.2 |
| 1/4" | HYH-BS-6 | 7/16" | 1/8" | 1,000' | 200' | 0.3 |
| 5/16" | HYH-BS-8 | 15/32" | 5/32" | 500' | 150' | 0.5 |
| 3/8" | HYH-BS-10 | 1/2" | 3/16" | 500' | 125' | 0.57 |
| 7/16" | HYH-BS-11 | 5/8" | 7/32" | 500 | 125 | 0.68 |
| 1/2" | HYH-BS-12 | 3/4" | 1/4" | 500' | 100' | 0.77 |
| 5/8" | HYH-BS-16 | 1" | 3/8" | 500' | 100' | 0.95 |
| 3/4" | HYH-BS-24 | 1 1/4" | 1/2" | 250' | 75' | 1.2 |
| 1" | HYH-BS-19 | 1 5/8" | 5/8" | 250' | 65' | 1.34 |
| 1 1/4" | HYH-BS-32 | 1 3/4" | 3/4" | 250' | 50' | 1.6 |
| 1 1/2" | HYH-BS-38 | 2 1/8" | 1" | 200' | 40' | 1.96 |
| 1 3/4" | HYH-BS-45 | 2 3/4" | 1 1/4" | 200' | 30' | 2.45 |
| 2" | HYH-BS-50 | 3 1/2" | 1 1/2" | 200' | 50' | 2.6 |
| 2 1/2" | HYH-BS-63 | 3 5/8" | 1 3/4" | 200' | 50' | 3.8 |
| 3" | HYH-BS-76 | 4 3/4" | 2 1/2" | 100' | 50' | 3.8 |
| 1,Other specifications can also be customized. | ||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
FAQ:
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
