Heat Resistant Wire Sleeve
>
Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic

Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic

Brand Name: HYH
Model Number: HYH-0294
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100m/spool, with standard export carton
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
UL, RoHS, SGS, REACH, ISO, IATF16949
Features:
High Temperature Resistant
Material:
PEEK Monofilament
Size:
1-100mm
Color:
Golden
Application:
Aerospace, Automotive, Teletronic And Chemical Process Industries
LOGO:
Customized
Name:
Expandable Braided Sleeving
Cutting Tool:
Hot Knife Cutting, Scissors
Supply Ability:
5 million meters per month
High Light:

Expandable Braided Heat Resistant Wire Sleeve

,

Aerospace Teletronic Heat Resistant Wire Sleeve

,

100mm Expandable Braided Sleeving

Product Description

Golden Color Resists Most Chemicals Acids Salt And Oil PEEK Expandable Braided Sleeving





Description of Braided Sleeving

This material is environmentally friendly and non-toxic, which can resists damage from radiation, resists Most Chemicals Acids Salt And Oil and will continue to perform in UHV (Ultra High Vacuum) environments. PEEK braided sleeve is extensively used in the aerospace, automotive, teletronic, and chemical process industries, and is considered an advanced biomaterial used in medical implants and other biomedical applications. PEEK braided sleeve will withstand thousands of sterilization cycles without damage or degradation.

PEEK braided expandable sleeving is tightly braided from 10 mil filaments of pure, unfilled PEEK polymer. The sleeving expands to fit over connectors and splices, and provides full coverage over wires hoses and cable bundles in advanced engineering applications.



Specification of Electrical Braided Sleeving:



Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34

1,Other specifications sizes can also be customized.

2,Because the PEEK sleeving has extendable.Therefore, there is a tolerance range of 1mm-2mm.
The larger the size, the larger tolerance.

3,Please inquire for details according to each specification.





PEEK braided sleeve (PolyEtherEther-Ketone) is a high performance advanced poly- mer with outstanding physical properties. PEEK braided sleeve is inherently flame retardant, with a V-0 flammability rating, will withstand continuous use in superheated water or steam up to 500°F, and resists most acids, solvents, and bases.



Feature Of Electrical Braided Sleeving

1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.

2. Braided of 0.25mm / 0.2mm Pet monofilament.

3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

5. Logo printing is available.

6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Technical data:

Material: PolyEtherEther-Ketone

Operating range: -70°C - +260°C

Melt point: 334±10°C

Flammability: UL VW-0

Standard colors: Black, Yellow

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife cutting or scissors

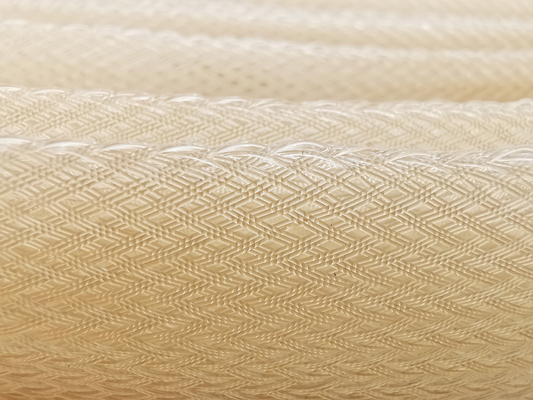

Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic 0

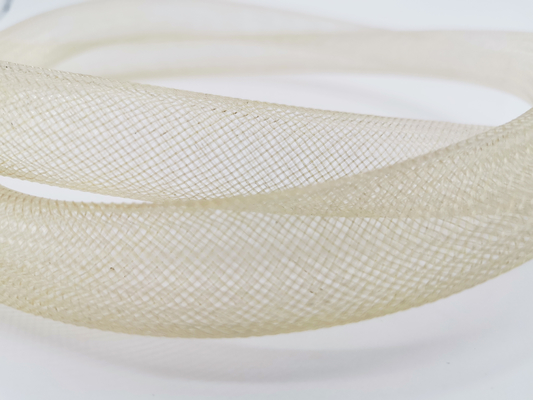

Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic 1

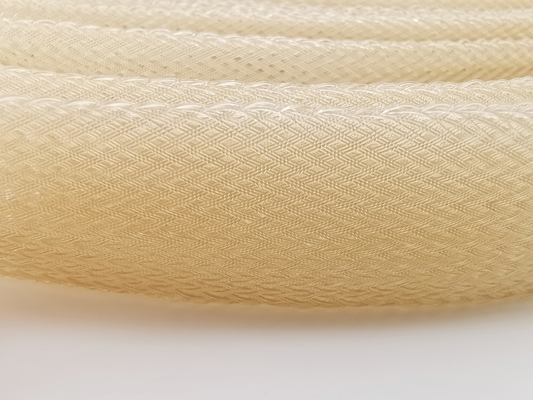

Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic 2





Expandable Braided Heat Resistant Wire Sleeve 100mm For Aerospace Teletronic 3









FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
