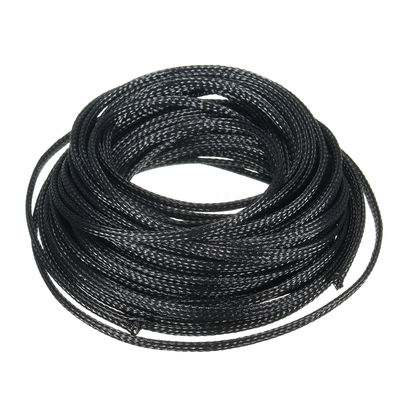

Wear Resistant Electrical Braided Sleeving Flameproof PET Automotive Wire Sleeve

Wear Resistant Electrical Braided Sleeving Flameproof PET Automotive Wire Sleeve

  • Wear Resistant Electrical Braided Sleeving Flameproof PET Automotive Wire Sleeve
  • Wear Resistant Electrical Braided Sleeving Flameproof PET Automotive Wire Sleeve
Wear Resistant Electrical Braided Sleeving Flameproof PET Automotive Wire Sleeve
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Electrical Braided Sleeving Application: Automotive Wire Cable Cover
Function: Cable Protection Feature 1: Wear Resistant
Feature 2: Flame Proof Material: Pet
High Light:

3mm Electrical Braided Sleeving

,

Flameproof Electrical Braided Sleeving

,

ROHS PET Automotive Wire Sleeve

Wear Resistant Electrical Braided Sleeving For Automotive Wire Cable Cover



Main Advantages of PET Electrical Braided Sleeving

Pet braided expandable cable sleeving is sleeved by the ROHS polyester silk knitting .It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety.Others can be customized according to customer demands including a variety of colors, patterns and all kinds of UV fluorescence color.



Dimensions of Electrical Braided Sleeving



Width Expandable range Packing
(m/roll)
Inch mm Min. Max.
1/8 3 1 6 500
1/4 6 3 9 500
5/16 8 5 16 400
3/8 10 7 19 400
1/2 12 8 24 300
5/8 15 10 27 300
3/4 20 14 30 250
1 25 18 35 200
1 1/4 30 20 50 150
1 1/2 40 30 60 100
1 3/4 45 35 75 100
2 50 40 80 100
2 1/2 64 45 105 100
3 76 64 120 100




Application of Electrical Braided Sleeving




Widely used in switch cabinet, railway, automobile, high-speed rail,aviation and other industries which have high rate demands to flame resistance for neatening and protecting the wire harnesses.



The wire insulation protection of household appliances, motor, cables, lighting, electro thermal products, electrical equipment and heat-resistant appliances, good insulation performance for high temperature and high pressure.



What are the Special of our PET Electrical Braided Sleeving ?

1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.

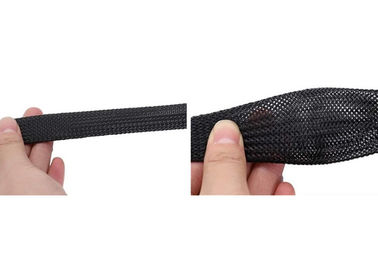

2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant



FAQ:

Q1. What is the biggest difference between your battery and other suppliers:

A: Safest with longer lifespan.

Q2. How about your Braided Sleeving delivery time?

A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3: How about your warranty?

A: 3 years warranty

Q4. Is this Braided Sleeving safe?

A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;



Notes:


1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.
