Braided Sleeving, Colorful Life
 |
| Place of Origin: | Shenzhen of China |
| Brand Name: | Huiyunhai |
| Certification: | UL, RoHS, REACH |
| Model Number: | HYH |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton |
| Supply Ability: | 500,000 meters per month |
| Name: | PET Braided Expandable Sleeving | Material: | PET Monfilament |
|---|---|---|---|
| Size: | Custom | Fuction: | Wear Resistant |
| Lead Time: | 5 Days | Usage: | Cable Harness |
| High Light: | 23mm Expandable Braided Cable Sleeving,Cable Management Expandable Braided Cable Sleeving,PET Monfilament Braided Wire Sheathing |
||

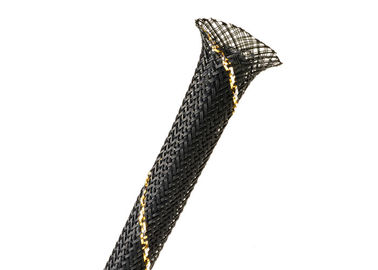

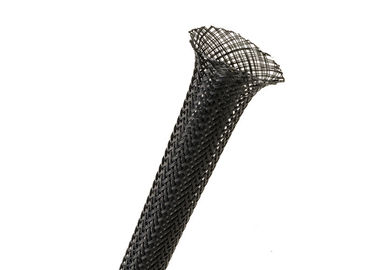

23mm Black PET Expandable Braided Sleeving Wear Resistant For Cable Management
Description of Braided Sleeving
◊ Made of PET monfilament,excellent flexible and abasion resistant.
◊ Excellent flexibility, easy to be bent, durable, expandable.
◊ It is not only able to protect your cable, but also make cable and wire more elegant.
◊ PET Expandable Braided Sleeve is widely used in the field of protecting computer cable,audio or video cable,automabile wiring harness,wire etc.
Specification:
| Size | Bundle Diameter | Description | ||
| Inch | mm | Min. | Max. | X * Y * Z |
| 1/8" | 3.2 | 3/32" | 1/4" | 40*1*0.25 |
| 1/4" | 6.4 | 1/8" | 7/16" | 32*3*0.20 |
| 3/8" | 9.5 | 3/16" | 5/8" | 48*3*0.20 |
| 1/2" | 12.7 | 1/4" | 3/4" | 56*3*0.20 |
| 3/4" | 19.1 | 1/2" | 1-1/4" | 72*3*0.20 |
| 1" | 25.4 | 1" | 2" | 96*3*0.20 |
| 1-1/4" | 29.0 | 3/4" | 1-3/4" | 96*3*0.25 |
| 1-1/2" | 40.0 | 1" | 2-1/2" | 96*4*0.25 |
| 1-3/4" | 45.0 | 1-1/4" | 2-3/4" | 120*3*0.25 |
| 2" | 50.0 | 1-1/2" | 3-1/2" | 120*4*0.25 |
> Flame-retardant
> Easy, Cost & Labor Effective Installation
> More Flexible Than Split Convoluted or Spiral Wrap
> Cuts easily with hot knife or scissor
Description of model Product NO: 723025-8
| NO | ITEM | PARAMETER | NO | ITEM | PARAMETER |
| A | CARRIERS | 72 | H | MATERIAL | PET |
| B | STRANDS PER CARRIERS |
3 | I | COLOR | BLACK |
| C | STRANDS OD | 0.25 | J | SGS | SGS report |
| D | MESH COUNT | 8 | K | EnvironmentalRequirement | Product complies with the EU ROHS standards |
| E | NOMINAL OD | 23.0MM | L | management standard |
ISO9001:2016 |
| F | MIN. OD | ￠23MM | M | SUPPLIER | HUIYUNHAI TECH.CO.,LTD |
| G | MAX. OD | ￠45MM | N | DATE | 2018.3.14 |
Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
Structure of pet braided sleeving
Expandable sleeving is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
Our PET braided sleeving has excellent wear resistance,elasticity,smoothness,flame retardancy and is made of industrial,high strength,environmentally friendly non-toxic 1.0 viscosity PET mono or multifilament.We can make sleevings of different widths, colors and patterns with mono or multifilament according to customer's request.Widely used for various types of automotive and aircraft wiring,consumer electronics, computers and other wire industry.
The selection of this sleeve refers to following four parameters.
A- yarn number (one or three)
B- Diameter of single yarn(0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine)
D- flat width(1mm or 100mm)
Pet expandable braided sleeve compiled by the Environmental Protection PET filament diameter monofilament 0.20mm or 0.25mm's made with good flexibility, flame resistance, abrasion resistance and heat resistance, network management can be easily expanded to the original 150% , and it is easy to tighten the various irregularly shaped objects, which can be maintained within a wide temperature range while maintaining a soft, can inhibit chemical corrosion, UV and friction, characterized by its unique mesh also has good ventilation, wire heat diffusion function in a timely manner.
3. Notes:
PET expandable sleeving in expanding at the same time can be shorten, about 30%, please reserve enough length.
Huiyunhai polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
Totally expanded the sleeving can reach at least 1.5 times than the initial dimension.
