Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath

Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath

  • Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath
  • Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath
Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath
Product Details:
Place of Origin: Shenzhen of China
Brand Name: Huiyunhai
Certification: UL, RoHS, REACH
Model Number: HYH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Supply Ability: 500,000 meters per month
Contact Now
Detailed Product Description
Name: Pet Expandable Wire Sleeving Material: Pet,nylon
Size: Custom Fuction: Wear Resistant
Feature: Halogen Free Usage: Cable Harness
High Light:

Halogen Free Electrical Wire Protective Sleeves

,

Braided Electrical Wire Protective Sleeves

,

PET Nylon Braided Cable Sheath

Cable Wire Protection Expandable Wire Sleeving Halogen Free


What is the Special of our PET Expandable Braided Sleeve?

1. Braided from 10 mil polyethylene terepthalate (PET) monofilament yarns.
2. It expands to 2 times the original size.
3. Excellent cut through and abrasion resistance
4. High quality alternative to Bentley Harris Expando, Alpha GRP-110, PET sleeving
5. Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6. Melt temperature of 260°C (500°F)
7. Expands up to three times its resting diameter
8. Halogen Free, ROHS compliant


Application Fields Electronics, automotive, marine and industrial wire harnessing application
Sleeve Material 0.25mm PET monofilament
Working Temperature -70°C to 125°C (-103°F to 257°F)
Melt Point 260°C (500°F)
Flame Retardant Yes
Flammability Class UL 94 V1
Size 20mm
Available Size 3mm~100mm
Standard Color Black,White,Grey
Available Color 64 colors available, accorcing to our color guide
Packaging 200m/Roll,4 rolls/ctn
Carton size: 52*52*18cm or customized
Container: 2000 rolls or 500 cartons for one 20' container
Full Size Sample Lead time: As usual 3-7 working days
Production Lead time: 7~10 days



Braided Expandable Cable Sleeving Application:


Widely used in switch cabinet, railway, automobile, high-speed rail,aviation and other industries which have high rate demands to flame resistance for neatening and protecting the wire harnesses.



The wire insulation protection of household appliances, motor, cables, lighting, electro thermal products, electrical equipment and heat-resistant appliances, good insulation performance for high temperature and high pressure.


Product feactures:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.



Notes:

Huiyunhai nylon expandable sleeving is made of nylon 6.6 monofilament which offers excellent performance of abrasion resistance. It is lightweight , highly flexible and it can resists to many chemicals agents. Uniquely shaped monofilament provides smooth, soft, slick surface resisting snags when dragged over rough surface.

Properties: Excellent flexibility, can be loosely, easy to lead wires, excellent contractility, elasticity and abrasive resistance.

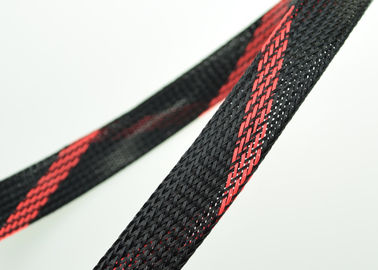

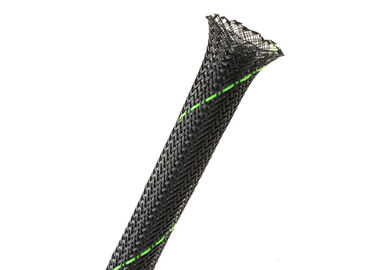

 Halogen Free Electrical Wire Protective Sleeves PET Nylon Braided Cable Sheath 0
