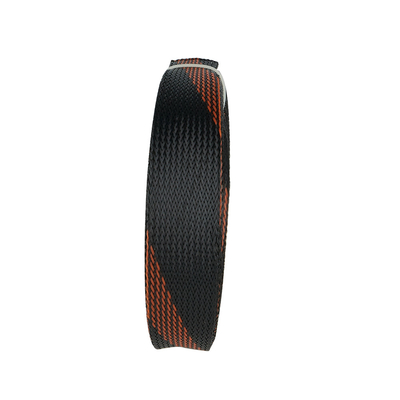

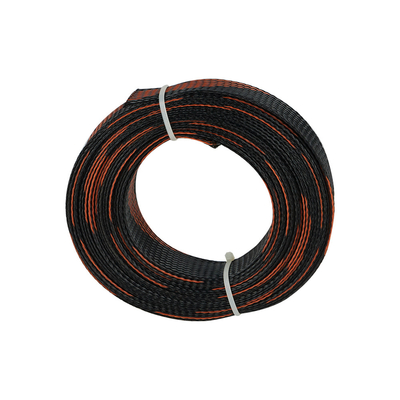

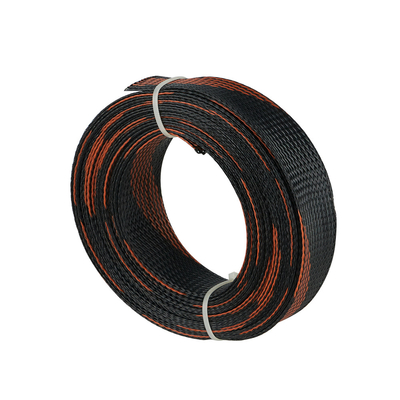

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant
1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant
1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant
Product Details:
Place of Origin: China Shenzhen
Brand Name: Huiyunhai
Certification: UL, RoHS, SGS, REACH, ISO, IATF16949
Model Number: HYH-101
Payment & Shipping Terms:
Minimum Order Quantity: 1000meter
Price: Negotiable
Packaging Details: 100m/spool, with standard export carton
Delivery Time: 7 working days
Payment Terms: T/T 100% advanced payment
Supply Ability: 5 million meters per month
Contact Now
Detailed Product Description
Features: Cable Protection And Abrasion Resistance Material: PET
Size: 1mm - 100mm Color: Black/Orange
Braiding Pattern: Customized LOGO: Customized
Packing: 100m/spool, With Master Carton Cutting Tool: Hot Knife Cutting
High Light:

100mm Expandable Braided Sleeving

,

1mm Expandable Braided Sleeving

,

100 Feet Expandable Braided Sleeving

Environmentally friendly and recyclable Flame Retardant Halogen Free PET Expandable Braided Sleeving



      HYH TECH Flame Retardant Halogen Free PET Expandable Braided Sleeving is made of flame retardant and halogen free polyester monofilament. It features flame retardant and durable abrasion resistance, even in different industrial applications for cable protection and organization. The expandable design allows for easy installation on bundles of hoses and cables, even when the hoses and cables are bulky or have large connectors. Once fully expanded, the polyester sleeving is 1.5-2 times larger than the natural width. It is commonly used to cover cables, wire harnesses, tubes, and industrial hoses easily. Customers can buy different colors for classify different fuction of the cables or wire harnesses or hoses.



Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: black/Orange

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife



Main Properties:



1, With certificate of UL:  E252099

2. Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

5, The quality is as good as Techflex Flexo PET, Flexo F6...

  • Size: Diameter: 1"| Length: 100 Feet | Color: Black. Diameter expands by 50%. Our wire sleeve is made from PET
  • Operating temp(degree F.):-50°C - +150°C Melt temp: 240±10°C
  • Our braided cable sleeve is used in automotive Hifi audio speaker hdmi wire
  • Our PET expandable braided sleeving : UL | ROHS | REACH | Halogen Free
  • Our cable sleeving protects and prolongs the life of wires. Economical and easy to install
  • Recommended: Cut Braided Sleeving with a HOT KNIFE to prevent fraying, if a Hot Knife is not available, make sure to sear the edges with another heat source (example: use the flame from a lighter)

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant 0

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant 1

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant 2

1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant 3





1-100mm Recyclable PET Expandable Braided Sleeving Black / Orange Flame Retardant 4





Product Parameter:



Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.





FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
