PET Expandable Braided Sleeving
>
Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh

Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh

Brand Name: HYH
Model Number: HYH-103
MOQ: Negotiable
Price: Negotiable
Packaging Details: 100m/spool, with standard master carton
Payment Terms: T/T 100% advanced payment
Detail Information
Place of Origin:
China
Certification:
UL, RoHS, SGS, REACH, ISO, IATF16949
Features:
Cable Protection And Abrasion Resistance
Material:
Polyester
Size:
1-100mm
Color:
Neon Blue
Braiding Pattern:
Customized
LOGO:
Customized
Packing:
100m/spool, With Master Carton
Cutting Tool:
Hot Knife Cutting
Supply Ability:
5000000 meters per month
High Light:

Flexible PET Expandable Braided Sleeving

,

IATF16949 Expandable Braided Sleeving

,

Polyester Expandable Braided Sleeving

Product Description

Flexible Cable Sleeve PET Expandable Braid Sleeving Flexible Wire Mesh Sleeve



     HYH cable sleeving is made of flame retardant and halogen free polyester monofilament. It features flexible, flame resistance, durable abrasion resistance, even in different industrial applications for cable protection and organization. It is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. PT can be found in applications ranging from small office/home office to high tech wire and cable harnesses.





Product Parameter:



Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.





  • Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: black, grey

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife



Main Properties:



1, With certificate of UL:  E252099
2. Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

5, The quality is as good as Techflex Flexo PET, Flexo F6...

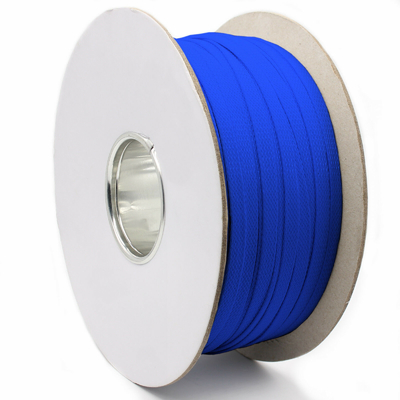

Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh 0

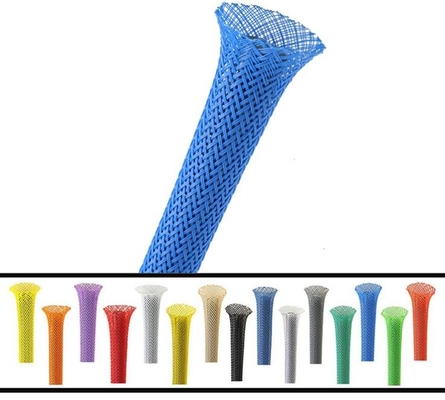

Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh 1

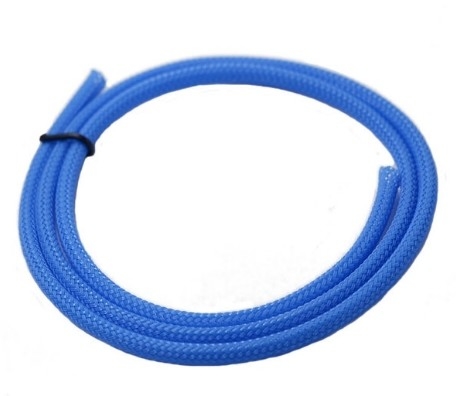

Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh 2



Flexible Cable PET Expandable Braided Sleeving Neon Blue 1-100mm Wire Mesh 3



FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
A:
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
