Braided Sleeving, Colorful Life

|
| Place of Origin: | China |
| Brand Name: | HYH |
| Certification: | UL, RoHS, SGS, REACH, ISO, IATF16949 |
| Model Number: | HYH-111 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100m/spool, with standard master carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T 100% advanced payment |
| Supply Ability: | 5000000 meters per month |
| Features: | Audio Cable Protection | Material: | PET |
|---|---|---|---|
| Size: | 2mm-150mm | Color: | Orange |
| Braiding Pattern: | Customized | LOGO: | Customized |
| Packing: | 100m/spool, With Master Carton | Cutting Tool: | Hot Knife Cutting |
| High Light: | UL PET Expandable Braided Sleeve,150 Degree PET Expandable Braided Sleeve,Flexo F6 PET Expandable Braided Sleeve |
||

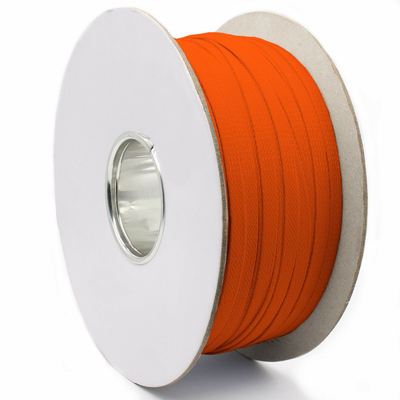

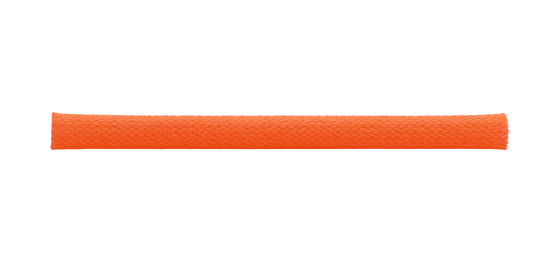

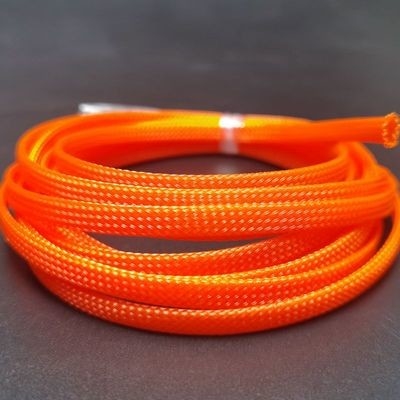

Orange Color Light Weight Flexible And Abrasion Resistance Audio Cable Sleeve PET Expandable Braided Sleeving
HYH Audio Cable sleeving has the features of abrasion resistance and light weight. HYH cable sleeve has passed the certificates of IATF169494, ROHS, REACH, UL Test and so on. it is made of Polyester monofilament (PET), With the expandability, HYH cable sleeve can be used for quick and easy installation over large connectors and long runs. Orange color cable sleeve is not only protect your cales, but also beautify your cables as well. For the audio cables, different colors makes different usage of the cables. It is easy to classify different cables. With 18 years OEM/ODM experience, HYH braided sleeve has Same quality as Flexo PET from techflex.
Material: Polyester
Operating range: -50°C - +150°C
Melt point: 240±10°C
Flammability: UL VW-1
Standard colors: Purple
Certificate: IATF16949, UL, RoHS, REACH, Halogen Free
Cutting tool: hot knife
Product Parameter:
| Product Sizes | ||||||
| Size | Part Number | Expansion Max | Expansion Min | Bulk Spool | Shop Spool | Lbs / 100' |
| 1/16" | HYH-BS-2 | 3/32" | 3/64" | 1,000' | 250' | 0.22 |
| 1/8" | HYH-BS-3 | 1/4" | 3/32" | 1,000' | 225' | 0.2 |
| 1/4" | HYH-BS-6 | 7/16" | 1/8" | 1,000' | 200' | 0.3 |
| 5/16" | HYH-BS-8 | 15/32" | 5/32" | 500' | 150' | 0.5 |
| 3/8" | HYH-BS-10 | 1/2" | 3/16" | 500' | 125' | 0.57 |
| 7/16" | HYH-BS-11 | 5/8" | 7/32" | 500 | 125 | 0.68 |
| 1/2" | HYH-BS-12 | 3/4" | 1/4" | 500' | 100' | 0.77 |
| 5/8" | HYH-BS-16 | 1" | 3/8" | 500' | 100' | 0.95 |
| 3/4" | HYH-BS-24 | 1 1/4" | 1/2" | 250' | 75' | 1.2 |
| 1" | HYH-BS-19 | 1 5/8" | 5/8" | 250' | 65' | 1.34 |
| 1 1/4" | HYH-BS-32 | 1 3/4" | 3/4" | 250' | 50' | 1.6 |
| 1 1/2" | HYH-BS-38 | 2 1/8" | 1" | 200' | 40' | 1.96 |
| 1 3/4" | HYH-BS-45 | 2 3/4" | 1 1/4" | 200' | 30' | 2.45 |
| 2" | HYH-BS-50 | 3 1/2" | 1 1/2" | 200' | 50' | 2.6 |
| 2 1/2" | HYH-BS-63 | 3 5/8" | 1 3/4" | 200' | 50' | 3.8 |
| 3" | HYH-BS-76 | 4 3/4" | 2 1/2" | 100' | 50' | 3.8 |
| 1,Other specifications can also be customized. | ||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
Main Properties:
1, With certificate of UL: E252099
2. Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
5, The quality is as good as Techflex Flexo PET, Flexo F6...
FAQ:
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
