|Place of Origin:||China|
|Certification:||UL, RoHS, SGS, REACH, ISO, IATF16949|
|Minimum Order Quantity:||Negotiable|
|Price:||according to the size|
|Packaging Details:||spool, with master carton|
|Delivery Time:||6 working days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||5000000 meters per month|
|Features:||Flame Retardant, Abrasion Resistance||Material:||PET|
|Size:||3-100mm||Color:||Black And Red|
|Print:||Customized||LOGO:||As Your Drawing|
|Packing:||Spool, With Master Carton|
PET Expandable Braided Sleeving 100mm,
Cable Management PET Expandable Braided Sleeving,
Abrasion Resistant PET braided cable sleeve

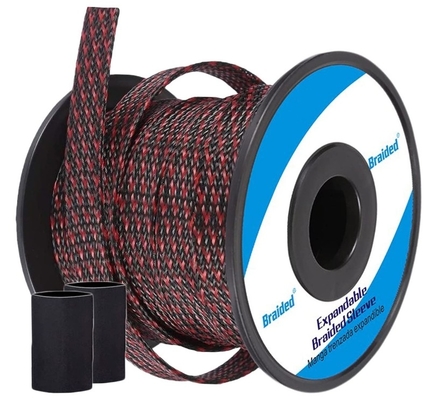

Black And Red Abrasion Resistant Cable Management Expandable Braided Sleeve
Operating range: -50°C - +150°C
Melt point: 240±10°C
Flammability: UL VW-1
Standard colors: black with red
Certificate: UL, RoHS, REACH, Halogen Free
Cutting tool: hot knife
|Size||Part Number||Expansion Max||Expansion Min||Bulk Spool||Shop Spool||Lbs / 100'|
|1 1/4"||HYH-BS-32||1 3/4"||3/4"||250'||50'||1.6|
|1 1/2"||HYH-BS-38||2 1/8"||1"||200'||40'||1.96|
|1 3/4"||HYH-BS-45||2 3/4"||1 1/4"||200'||30'||2.45|
|2"||HYH-BS-50||3 1/2"||1 1/2"||200'||50'||2.6|
|2 1/2"||HYH-BS-63||3 5/8"||1 3/4"||200'||50'||3.8|
|3"||HYH-BS-76||4 3/4"||2 1/2"||100'||50'||3.8|
|1,Other specifications can also be customized.|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
3,Please inquire for details according to each specification.
HYH Tech Flame Retardant Nylon Expandable Braided Sleeving is made of nylon or PA66 monofilament. It features a durable abrasion resistance, even in different industrial applications for cable protection and organization. The open weave design allows for easy installation on bundles of hoses and cables, even when the hoses and cables are bulky or have large connectors. Once fully expanded, the polyester sleeving is 1.5-2 times larger than the natural width. It is commonly used to cover cables, wire harnesses, tubes, and industrial hoses that require additional protection.Customized Flame Retardant Braided Sleeving Abrasion Resistant Same Quality Level As Techflex Flexo PET. PET high leve flame retardant is made of UL94 V0 grade PET monofilament (our UL number: E252099 ), which has good scalability, wear resistance and flame retardant. The biggest feature of this network management is that its flame retardant grade can reach the VW-1 level.
Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. What is your price term?
A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.
Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can provide free samples, the customers just need to pay the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.
Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
