Braided Sleeving, Colorful Life

Home ProductsPET Expandable Braided Sleeving

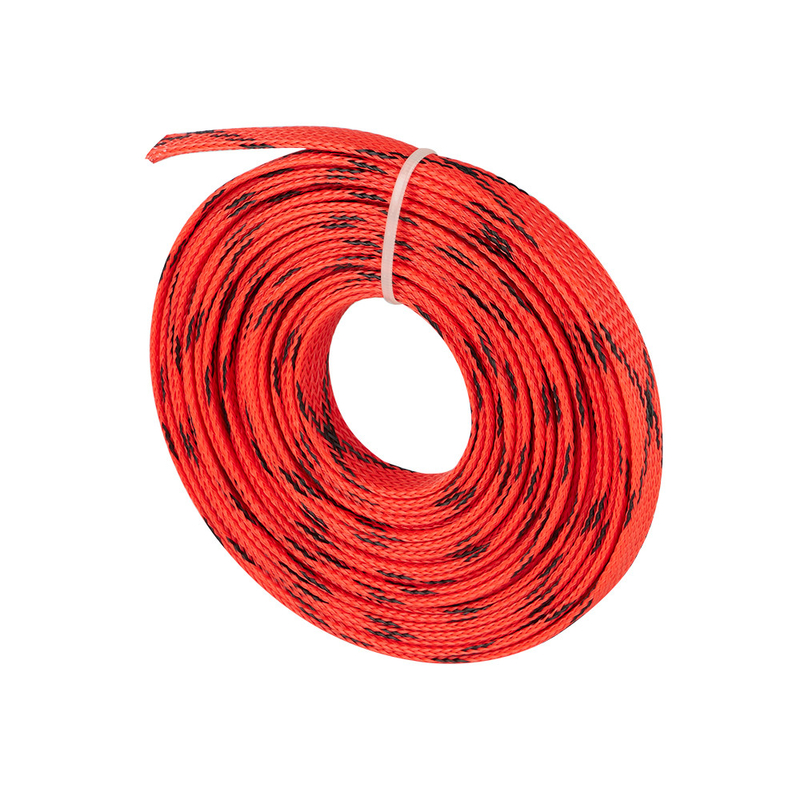

Flexible Expandable Braided Cable Sleeve For Cable Protection

Flexible Expandable Braided Cable Sleeve For Cable Protection

Flexible Expandable Braided Cable Sleeve For Cable Protection
Flexible Expandable Braided Cable Sleeve For Cable Protection
Flexible Expandable Braided Cable Sleeve For Cable Protection
Product Details:
Place of Origin: China
Brand Name: Huiyunhai
Certification: UL, RoHS, SGS, REACH, ISO, IATF16949
Model Number: HYH-105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100m/spool, with standard master carton
Delivery Time: 7 working days
Payment Terms: T/T 100% advanced payment
Supply Ability: 5000000 meters per month
Contact Now
Detailed Product Description
Material: PET Size: 3mm-100mm
Feature 1: Flexible Feature 2: Cable Protection And Management
Name: PET Expandable Braided Sleeving LOGO: Customized
Cutting Tool: Hot Knife Cutting
High Light:

Flexible Expandable Braided Cable Sleeve


100mm Expandable Braided Cable Sleeve


Flexible pet braided sleeve

Flexible PET Expandable Braided Sleeving For Cable Protection



Description of Braided Sleeving

Pet braided expandable cable sleeving is sleeved by the ROHS polyester silk knitting .It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety.Others can be customized according to customer demands including a variety of colors, patterns and all kinds of UV fluorescence color.



Product Parameter:


Product Sizes
Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8
1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.



  • Technical data:

Material: Polyester

Operating range: -50°C - +150°C

Melt point: 240±10°C

Flammability: UL VW-1

Standard colors: black, grey

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: hot knife


Main Properties:


1, With certificate of UL:  E252099
2. Flame-retardant and halogen-free.
3. It offers durable abrasion resistance in a wide range of industrial applications.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

5, The quality is as good as Techflex Flexo PET, Flexo F6...


Application of Braided Sleeving

1. wind power

2. thermal power generation

3. civil aviation

4. Railway

5. military project

6. motor and transformer Etc.


Flexible Expandable Braided Cable Sleeve For Cable Protection 0


Flexible Expandable Braided Cable Sleeve For Cable Protection 1






Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. Different payment terms against countries.

Q3. What is your terms of delivery?


Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.

Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7. What is your sample policy?
We can provide free samples, the customers just need to pay the courier cost.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test and FQC before delivery.

Q9: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure your benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
