| Brand Name: | HYH |
| Model Number: | 3MM-100MM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 500meters/roll. 100meters/roll, 100FT/roll |
| Payment Terms: | D/P, T/T |

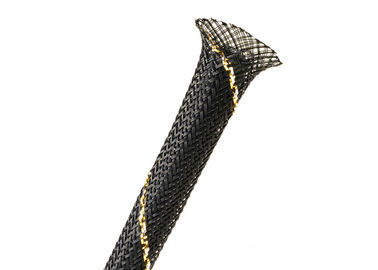

flame retardant PET Expandable Braided Sleeving For Wiring Harness
Product Specifications:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
4. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.
Product Parameter:
|
Product Sizes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Size |
Part Number |
Expansion Max |
Expansion Min |
Bulk Spool |
Shop Spool |
Lbs / 100' |
|
1/16" |
HYH-BS-2 |
3/32" |
3/64" |
1,000' |
250' |
0.22 |
|
1/8" |
HYH-BS-3 |
1/4" |
3/32" |
1,000' |
225' |
0.2 |
|
1/4" |
HYH-BS-6 |
7/16" |
1/8" |
1,000' |
200' |
0.3 |
|
5/16" |
HYH-BS-8 |
15/32" |
5/32" |
500' |
150' |
0.5 |
|
3/8" |
HYH-BS-10 |
1/2" |
3/16" |
500' |
125' |
0.57 |
|
7/16" |
HYH-BS-11 |
5/8" |
7/32" |
500 |
125 |
0.68 |
|
1/2" |
HYH-BS-12 |
3/4" |
1/4" |
500' |
100' |
0.77 |
|
5/8" |
HYH-BS-16 |
1" |
3/8" |
500' |
100' |
0.95 |
|
3/4" |
HYH-BS-24 |
1 1/4" |
1/2" |
250' |
75' |
1.2 |
|
1" |
HYH-BS-19 |
1 5/8" |
5/8" |
250' |
65' |
1.34 |
|
1 1/4" |
HYH-BS-32 |
1 3/4" |
3/4" |
250' |
50' |
1.6 |
|
1 1/2" |
HYH-BS-38 |
2 1/8" |
1" |
200' |
40' |
1.96 |
|
1 3/4" |
HYH-BS-45 |
2 3/4" |
1 1/4" |
200' |
30' |
2.45 |
|
2" |
HYH-BS-50 |
3 1/2" |
1 1/2" |
200' |
50' |
2.6 |
|
2 1/2" |
HYH-BS-63 |
3 5/8" |
1 3/4" |
200' |
50' |
3.8 |
|
3" |
HYH-BS-76 |
4 3/4" |
2 1/2" |
100' |
50' |
3.8 |
|
|
|
|
|
|
|
|
|
1,Other specifications can also be customized. |
||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
Storage:
1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.
2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.
Packing And Shipping:
1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.
3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.
3. What is your delivery time?
We will deliver in 15-20 work days.
Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
|
