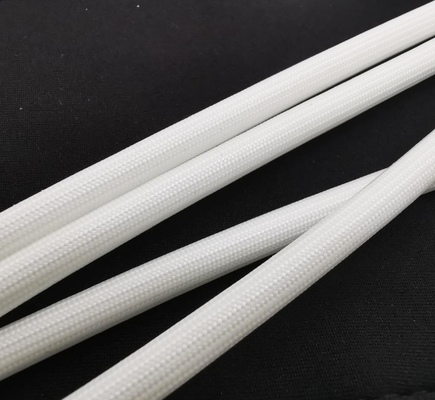

Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature

Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature

Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature
Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature
Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature
Product Details:
Place of Origin: China
Brand Name: HYH Tech
Certification: RoHS, REACH, SGS, ISO
Model Number: HYH-080
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: Negotiable
Packaging Details: reel with carton
Delivery Time: 10 working days
Payment Terms: L/C, T/T
Supply Ability: 1000000 m per month
Contact Now
Detailed Product Description
Material: Coated Silicone Resin And Fiberglass Braided Name: Heat Resistant Wire Sleeve
Size: 3mm - 32mm Type: Insulation Tube
Operating Range: -60°C-600°C Breakdown Voltage: 700V
High Light:

RoHS Heat Resistant Wire Sleeve

,

Silicone Heat Resistant Wire Sleeve

,

ODM heat resistant braided sleeving

Coated Silicone Resin Heat Resistant Wire Sleeve High Temperature





Description:



  • [PARAMETER] Material: Alkali-free Fiberglass; Length: 5 Meter / 16.4 Feet; Inner Diameter: 3mm; Thickness: 0.18mm; Working Temp Range: –60℃～+600℃; Working Voltage: 500V～800V; Flame Resistance: VW-1.
  • [FEATURE] This heat sleeve fiberglass are for high temperature applications, also, it keeps wire neat and organized.
  • [MADE] This product is made of alkali-free fiberglass. Then coated with a small amount of binder. Lastly, process the pipe under a high temperature.
  • [APPLICATION] The heat shield tubing is mainly applied to insulate and heat equipment, such as motor, engine, plug wire, fuel lines, decorative light, etc.
  • [NOTE] Electrical wires should never be hot. Should increase the gauge of wire if you are exceeding the recommended load of that wire. This product would make the wire get hot by not letting it cool and might melt the insulation on said wire.



Specification
item
value
Working temperature
-60 C~ 600 C
Rated voltage
1.2KV / 1.5V / 2.5KV / 4KV / 7KV / 10KV
Uses
This product is widely used in commercial electronics, household appliances insulation, electronic transformers, automotive wiring
harness, energy-saving lamps, electronic equipment, equipment, internal cable protection and insulation treatment.
Color
white
Type
Insulation tube





Datasheet:



Part No. I.D.(I) Wall thickness(t) Packing (L)
HYH-FG-003 3 0.2 100 m/roll
HYH-FG-004 4 0.3 100 m/roll
HYH-FG-005 5 0.3 100 m/roll
HYH-FG-006 6 0.3 100 m/roll
HYH-FG-007 7 0.35 100 m/roll
HYH-FG-008 8 0.35 50 m/roll
HYH-FG-010 10 0.35 50 m/roll
HYH-FG-012 12 0.35 50 m/roll
HYH-FG-015 15 0.43 50 m/roll
HYH-FG-018 18 0.43 50 m/roll
HYH-FG-020 20 0.43 50 m/roll









Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature 0







FAQ:





Q1. What is your terms of packing?
A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% in advance. if your order is big, the payment term could be negotiable.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDP.



Q4. What is your price term?

A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

Q5. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
