| Brand Name: | HYH |
| Model Number: | 3MM-100MM |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 500meters/roll. 100meters/roll, 100FT/roll |
| Payment Terms: | D/P, T/T |

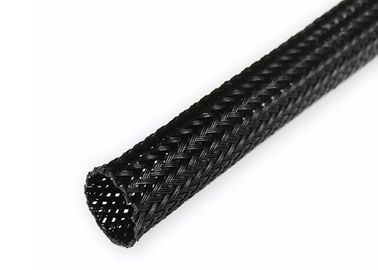

Flame Retardant PET Braided Automotive Wire Sleeve 15mm 25mm
Product Specifications:
1. Width: 1mm - 150mm;
2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package
3. The extended range:50% - 100%;
4. Can provide free samples of 5-15 meter.
Product Parameter:
|
Product Sizes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Size |
Part Number |
Expansion Max |
Expansion Min |
Bulk Spool |
Shop Spool |
Lbs / 100' |
|
1/16" |
HYH-BS-2 |
3/32" |
3/64" |
1,000' |
250' |
0.22 |
|
1/8" |
HYH-BS-3 |
1/4" |
3/32" |
1,000' |
225' |
0.2 |
|
1/4" |
HYH-BS-6 |
7/16" |
1/8" |
1,000' |
200' |
0.3 |
|
5/16" |
HYH-BS-8 |
15/32" |
5/32" |
500' |
150' |
0.5 |
|
3/8" |
HYH-BS-10 |
1/2" |
3/16" |
500' |
125' |
0.57 |
|
7/16" |
HYH-BS-11 |
5/8" |
7/32" |
500 |
125 |
0.68 |
|
1/2" |
HYH-BS-12 |
3/4" |
1/4" |
500' |
100' |
0.77 |
|
5/8" |
HYH-BS-16 |
1" |
3/8" |
500' |
100' |
0.95 |
|
3/4" |
HYH-BS-24 |
1 1/4" |
1/2" |
250' |
75' |
1.2 |
|
1" |
HYH-BS-19 |
1 5/8" |
5/8" |
250' |
65' |
1.34 |
|
1 1/4" |
HYH-BS-32 |
1 3/4" |
3/4" |
250' |
50' |
1.6 |
|
1 1/2" |
HYH-BS-38 |
2 1/8" |
1" |
200' |
40' |
1.96 |
|
1 3/4" |
HYH-BS-45 |
2 3/4" |
1 1/4" |
200' |
30' |
2.45 |
|
2" |
HYH-BS-50 |
3 1/2" |
1 1/2" |
200' |
50' |
2.6 |
|
2 1/2" |
HYH-BS-63 |
3 5/8" |
1 3/4" |
200' |
50' |
3.8 |
|
3" |
HYH-BS-76 |
4 3/4" |
2 1/2" |
100' |
50' |
3.8 |
|
|
|
|
|
|
|
|
|
1,Other specifications can also be customized. |
||||||
|
2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm. 3,Please inquire for details according to each specification. |
||||||
Notes of cable sleeve
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
Storage:
1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.
2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.
Packing And Shipping:
1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.
3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.
FAQ:
1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.
2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.
3. What is your delivery time?
We will deliver in 15-20 work days.
4. Can you accept mixed products in one container?
Yes, we accept for sure.
Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
|
